Parameters
| F.NO | 3.8-16 | TV Distortion | 0.0005% |
| Magnification Range | 0.9-1.2 | Standard Magnification | 1 |
| O/I | 449.53 | Flange Distance | 212.09 |
| Mount | V-Mount（φ49） | Focal length | 116 |
| Max image circle | φ82 | WD | 115 |
- Store Location
- Call Us For Enquiry
- Welcome to Earth Tekniks. We provides Best Industrial Camera, Lens & Lights

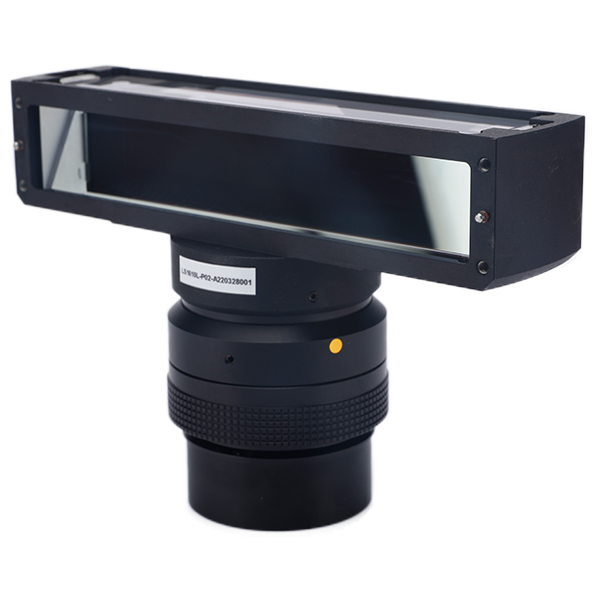

LS1610L-P02
₹174,000.00
Designed for coaxial lighting system
Avoid the resolution deduction caused by using the beam splitter
Achieve the detection requirements of high resolution and high
contrast
16K / 5 μ and compatible with
16K / 3.5 μ and 12K / 5 μ line scan cameras
With 30*80mm splitter prism
Ultra-low optical distortion, less than 0.001%, or 1 pixel
Big aperture, FNO. 3.8
