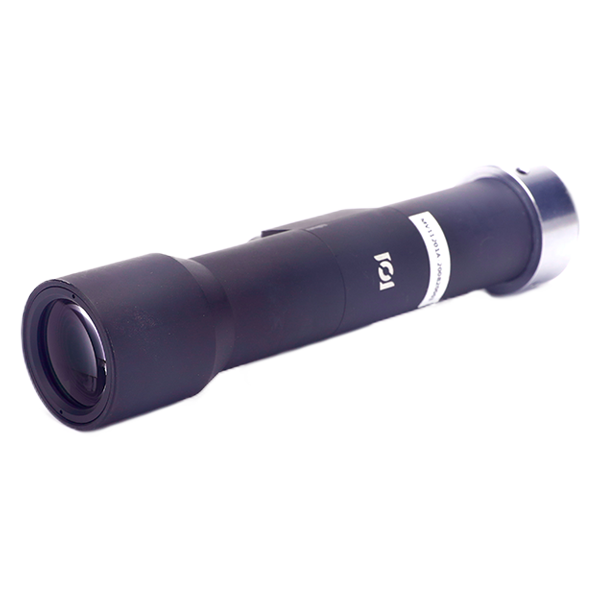

High resolution supports 5MP 2/3″ camera
Adopt double telecentric (object side, image side) design
Proprietary identification of features such as integrated circuits, glass, LCD panels, etc.
Easy for automated high speed operations.
Parameters
| EFL | Coaxial Illumination | Sensor size | 2/3″ |
| Magnification（x） | 2x | MOD | 110 |
| F.NO | 13.6 | Numerical aperture | 0.074 |
| Telecentric degree | <0.1° | TV Distortion | ﹤0.05% |
| Depth of field | 0.153 | Object Resolution | 4.53um |
| TTL | 145.30 | Mount | C-Mount |
| 2/3″FOV(D×H×V) | 5.5×4.4×3.3 | Magnification | 2 |
| WD | 110mm |
