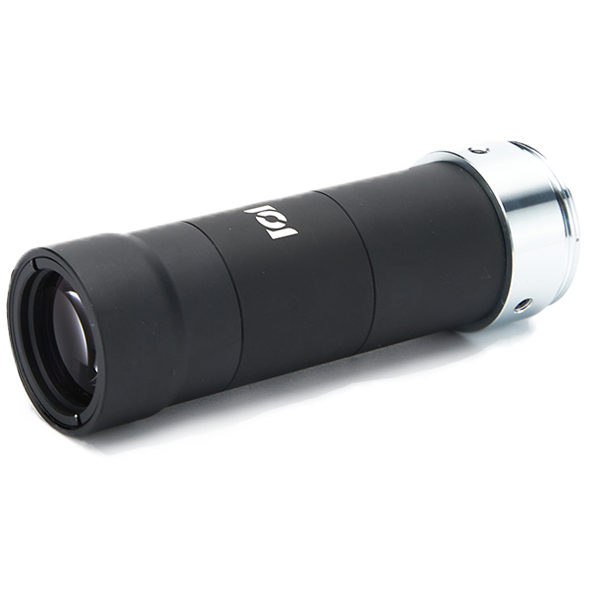

High resolution supports 5MP 2/3″ camera
Adopt double telecentric (object side, image side) design
Proprietary identification of features such as integrated circuits, glass, LCD panels, etc.
Efor automated high speed operations
Parameters
| EFL | None- coaxial Illumination | Sensor size | 2/3″ |
| Magnification（x） | 2x | MOD | 65 |
| F.NO | 13.5 | Numerical aperture | 0.074 |
| Telecentric degree | ﹤0.05° | TV Distortion | ﹤0.1% |
| Depth of field | 0.152 | Object Resolution | 4.53um |
| TTL | 94.57 | Mount | C-Mount |
| 2/3″FOV(D×H×V) | 5.5×4.4×3.3 | Magnification | 2 |
| WD | 65mm |
Fixed aperture, manual adjustable aperture is optional
