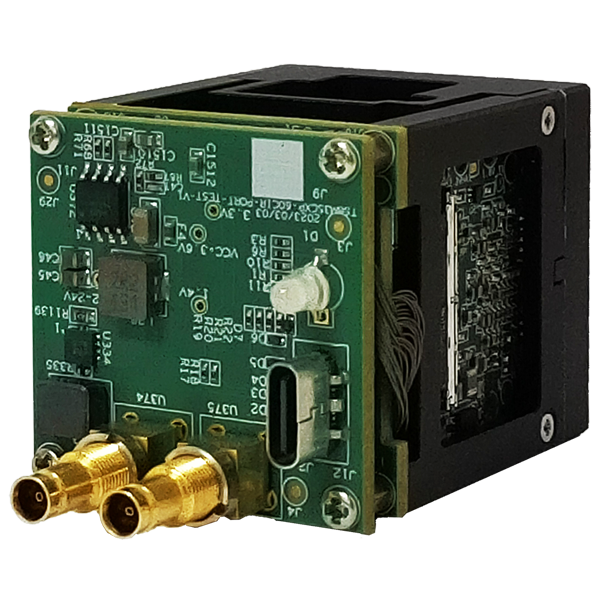

| Model | TM8M3CXP-60CN |
| Sensor | Rolling Shutter CMOS |
| Image Mode | Monochrome and color |
| Optical Size | 8.86 mm |
| Resolution | 3840 * 2160 * 2(Bayer / NIR) |
| Pixel Size | 2μm * 2μm |
| Max Frame Rate | 60 fps |
| Data Format | 8 bit |
| Dynamic Range | ≥53.8 dB |
| Data Rate | 948 MB/s（8bit） |
| Trigger Mode | Free run / External trigger |
| External Trigger | External IO / CXP Trigger |
| Exposure Control | Program / Pulse Width |
| Exposure Time | 7.475μs – 16660μs(Step:7.475μs) |
| Analog Gain | 0/3/6/9/12/15/18/21/24/27dB |
| Digital Gain | 0.01-8.00x |
| Lens Mount | C Mount |
| Data Interface | CoaXPress |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | PoCXP supply |
| Power Consumption | 3.2W |
| Dimensions | 34.0mm(W) x 29.0mm(H) x 63.98mm(D |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
