Description
Standards

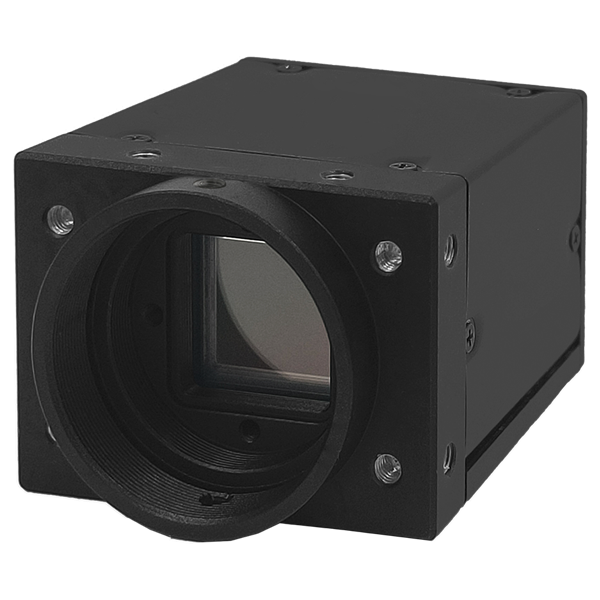

| Model | TS25MCXP-42M/C |
| Sensor Type | GMAX0505, Global Shutter CMOS |
| Image Mode | Mono / Color |
| Optical Size | 18.10 mm |
| Resolution | 5120 * 5120 |
| Pixel Size | 2.5μm * 2.5μm |
| Max Frame Rate | 41.79fps@8bit,35.98fps@10bit,30.48fps@12bit |
| Data Format | 8/10/12 bit |
| Dynamic Range | ≥62.6 dB |
| Data Rate | 1199 MB/s |
| Trigger Mode | Free Run / External Trigger |
| Trigger Source | External IO / CXP Trigger |
| Exposure Control | Program / Pulse Width |
| Exposure Time | 8μs-100s (Step: 1μs) |
| Analog Gain | 0.6/0.8/1.0/1.2/1.4/1.6/1.8/2.0x |
| Digital Gain | 0.1-8.0x |
| Lens Mount | C Mount/ M29 * 0.45 |
| Data Interface | CoaXPress |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 0.5A or PoCXP supply |
| Power Consumption | 3.1 W (DC supply) ; 3.3W(PoCXP supply) |
| Dimensions | 44mm x 33mm x 68.11mm |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
