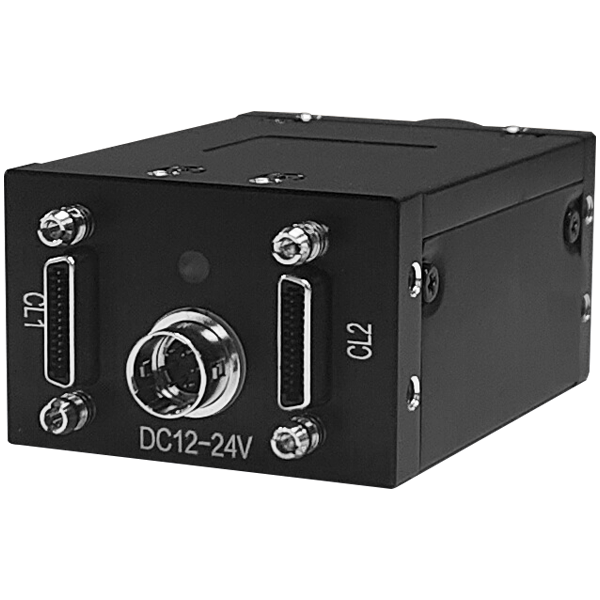

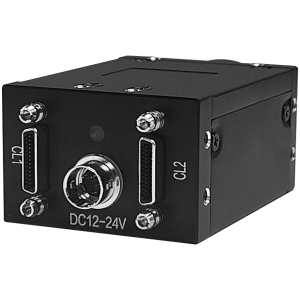

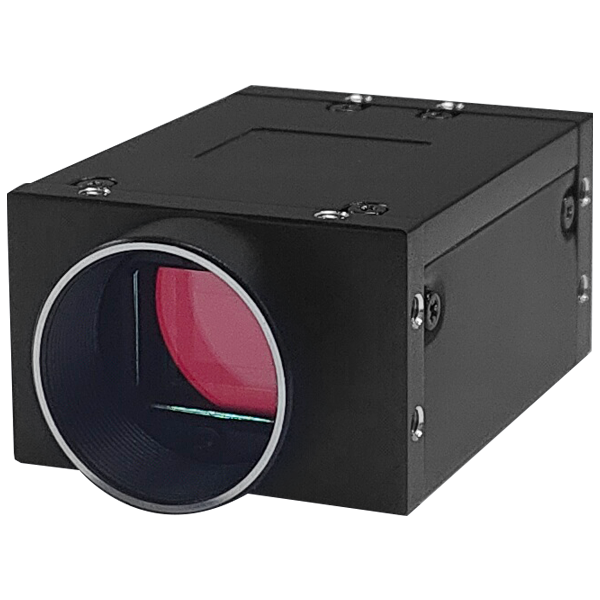

| Model | UB5MABCL-160C |
| Description | 5MP Camera Link Area Scan Camera |
| Sensor | IMX250 |
| Resolution | 2448 * 2048 |
| Pixel Size | 3.45um |
| Image Mode | Mono / Color |
| Optical Size | 11.01mm |
| Dynamic Range | ≥71.5dB |
| SNR | 40.3dB |
| Max Frame Rate | 160.154fps@10Tap, 128.833fps@8Tap, 97.153fps@6Tap, 65.125fps@4Tap, 48.981fps@3Tap, 32.745fps@2Tap |
| Data Format | Monochrome: Mono8/10/12 Color: Mono8/Bayer8/10/12/RGB |
| Data Rate | 803MB/s |
| Exposure Control | External PWM / Timed / Auto Exposure |
| Exposure Time | 1.08us~10s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Trigger Signal | Camera Link Signal / External IO Signal / Software Trigger Signal |
| Analog Gain | 0~24dB |
| Digital Gain | 0.004~8 |
| Data Interface | Camera Link |
| Lens Mount | C Mount |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC 12~24V (±10%) 1.0A |
| Power Consumption | 5.2W |
| Mechanical Dimensions | 44.0mm x 29.0mm x 75.6mm |
| Operation Temperature | 0~55℃ |
| Storage Temperature | -20~75℃ |
| Product Weight | 86.4g |
Additional information
| Data Interface | Camera Link |
|---|---|
| Resolution | 5MP |
| Horizontal Resolution | 2,448 |
| Vertical Resolution | 2,048 |
| Mono/Color | Mono |
| Rate (kHz/fps) | 160.2 |
| Pixel Size (μm) | 3.45 |
| Sensor Format(mm) | 11.01 |
| Sensor | IMX250 |
| Sensor Type | Global CMOS |
| Lens Mount | C Mount |
