Description
Standards

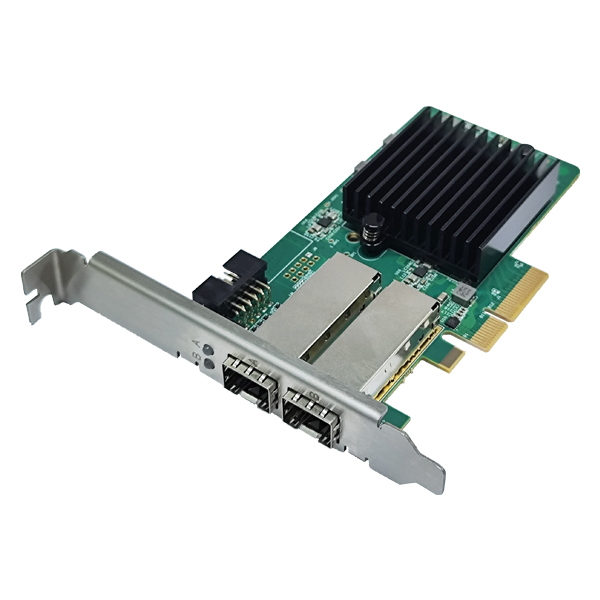

| Model | Vulcan-FXGV2-S-2 |
| Protocol | GigE Vision V2.0 GenICam |
| Bit Depth | 8/10/12/14/16 bit |
| Image Mode | Mono / Bayer / YUV422 / RGB / RGBC / BGR / BGRC |
| Host Interface | PCIe Gen3 x 4 |
| Connector | SFP+ × 2 |
| Channel Speed | 10 Gbps × 2 |
| Data Rate | 20 Gbps |
| Memory Management | DMA buffers directly transferred to system memory |
| Scan Mode | Line scan / Area scan |
| Maximum Cameras | 2 |
| Power Consumption | <11.8W |
| Firmware Upgrade | Supports online firmware update |
| Operating Temperature | 0-55℃ |
| Operating System | Windows 10 / 7 (32-bit and 64-bit) Linux (64-bit) macOS |
Additional information
| Bit Depth | 10 bit, 12 bit, 14 bit, 16 bit, 8 bit |
|---|---|
| Image Mode | Bayer, BGR, BGRC, Mono, RGB, RGBC |
| Frame Resolution | / |
| Frame Grabber Data Interface | 10 GigE |
