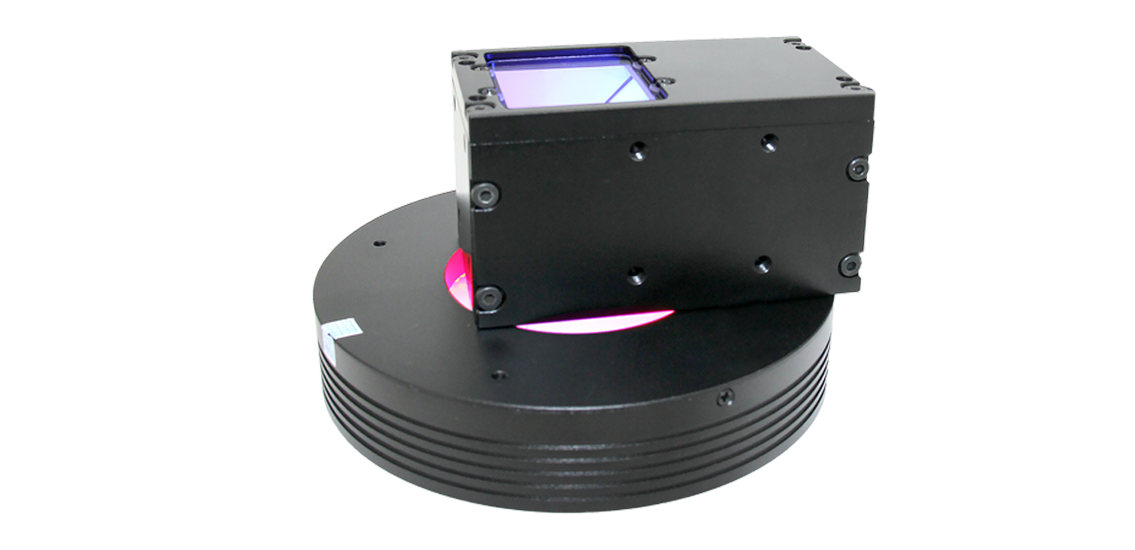

Coaxial ring light combination light source

The introduction of dichroic filters makes the blue coaxial light semi-transmissive and semi-reflective, and the transmittance of the infrared annular 850nm light source is greater than 96%, which can reduce infrared light loss and achieve the best effect of two light sources on the same workstation.

Categories: Coaxial light source, Industrial Lights

Description
Reviews (0)

Description

Selection Instructions

JL	–	COX	40	–	AR	120	60	–	C
brand		Coaxial series	Light-emitting surface size (unit: mm)		Ring Light Series	Outer diameter (unit: mm)	angle		Customized products

Optical Process

The AR ring light is below the blue light coaxial line, with the CCD above it. The blue light 460nm passes through a dichroic filter for semi-transmission and semi-reflection, and the IR850nm passes through a dichroic filter for high transmittance, and is designed for 45-degree incidence.

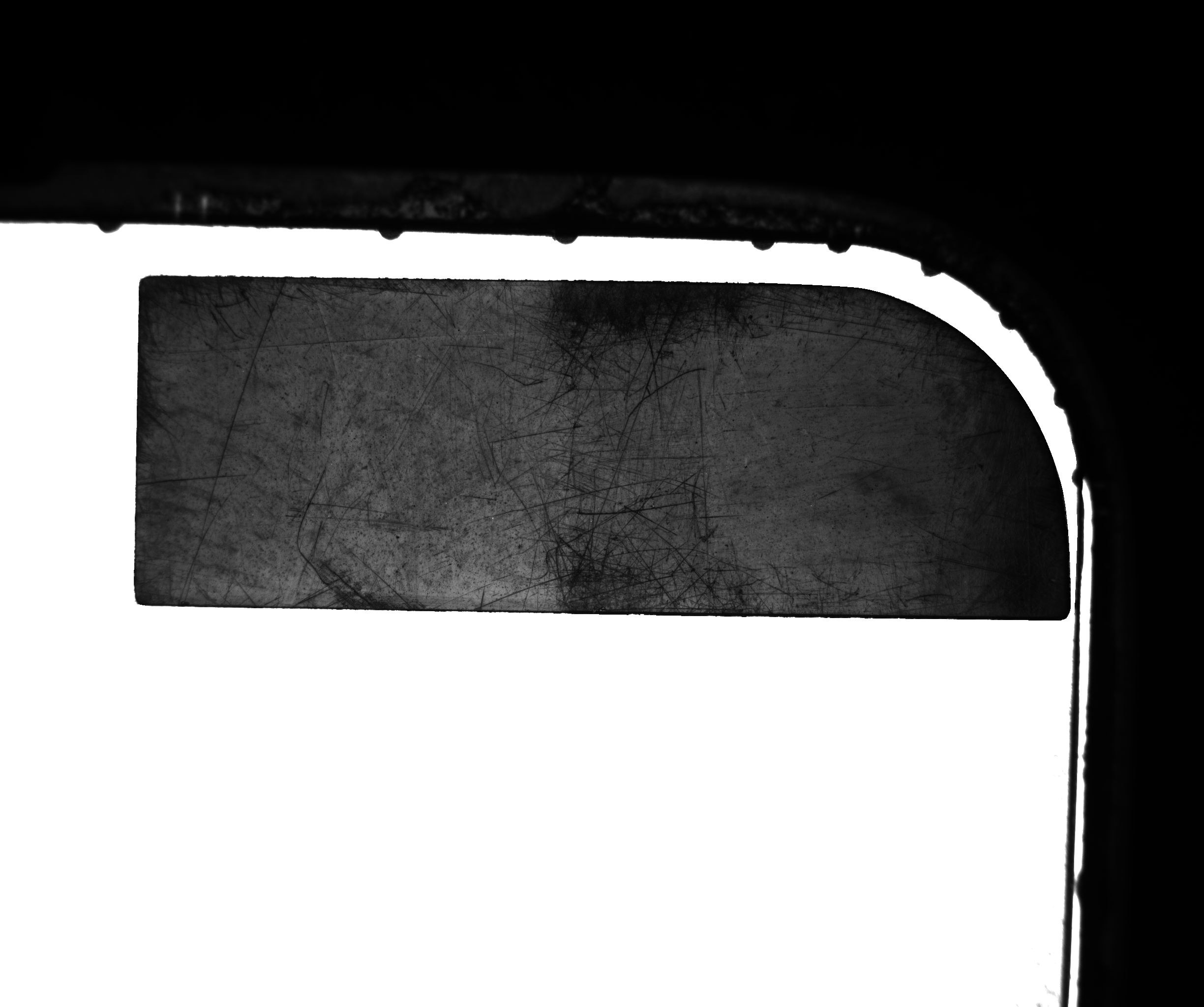

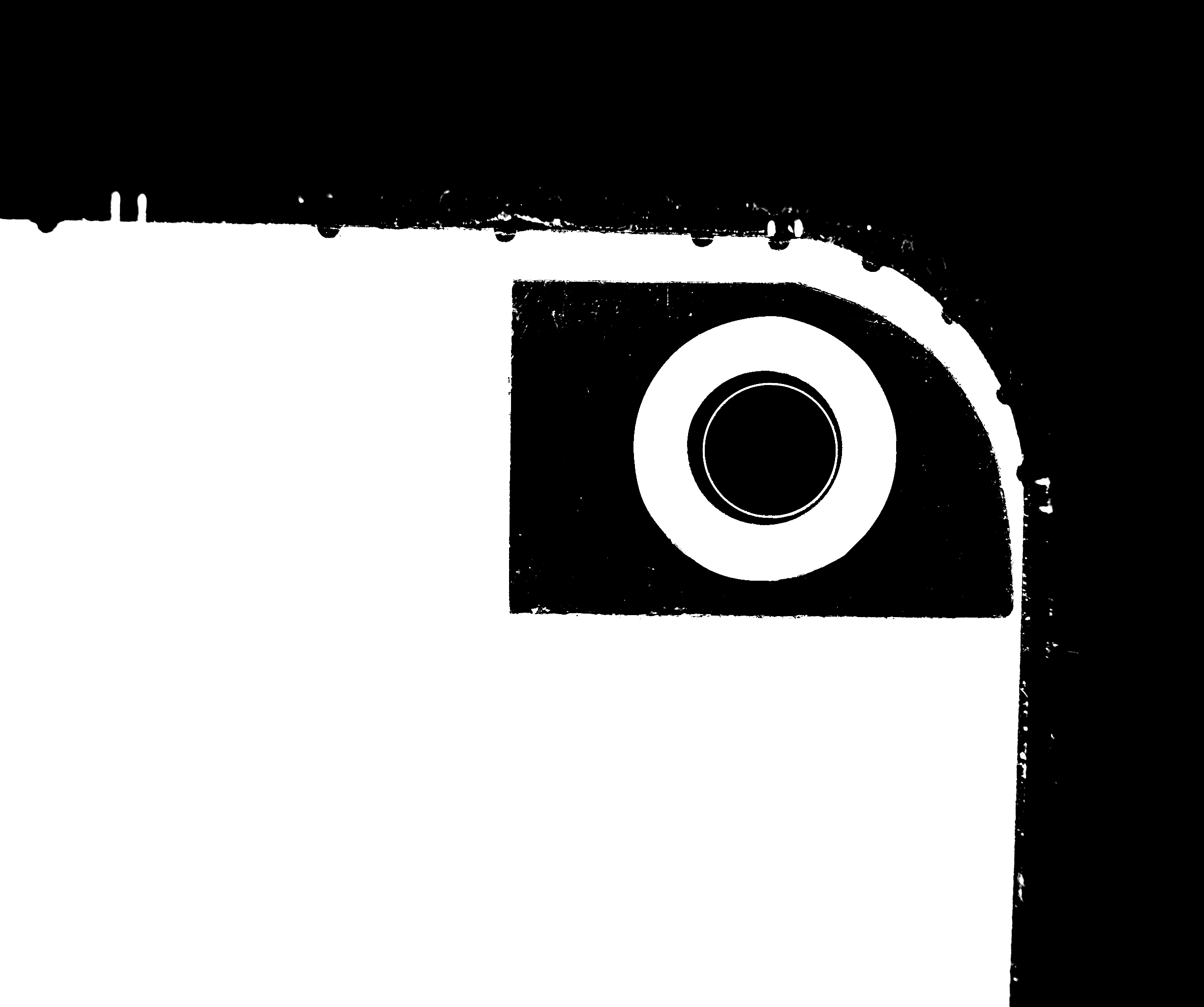

Imaging Case
