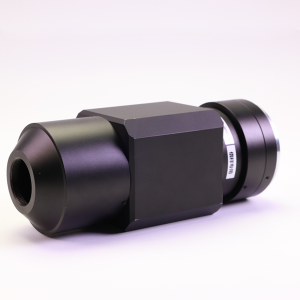

Description
Illumination Type: Non-Coaxial
Focus length: 160mm
Sensor: 1.4″
Magnification: 0.8x
Wavelength: 420-680nm
Tube Lens Mount: M26×P0.706
Tube Length: 157.28
Flange distance: 17.526
Mount: C-Mount
1.4 inch FOV(H×V): 23.85×16.35
1.1 inch FOV(H×V): 17.6×13.25
2/3 inch FOV(H×V): 11×8.25
1/2 inch FOV(H×V): 8×6
Size: φ54×147.28
Additional information
| Wavelength | 420-680nm |
|---|---|
| Tube Lens Mount | M26×P0.706 |
| Tube Length | 157.28 |
| Flange distance | 17.526 |
| 1.4 inch FOV(H×V) | 23.85×16.35 |
| Micro Focus length | 160mm |
| Micro Sensor | 1.4" |
| Micro Magnification | 0.8x |
| Micro Mount | C-Mount |
