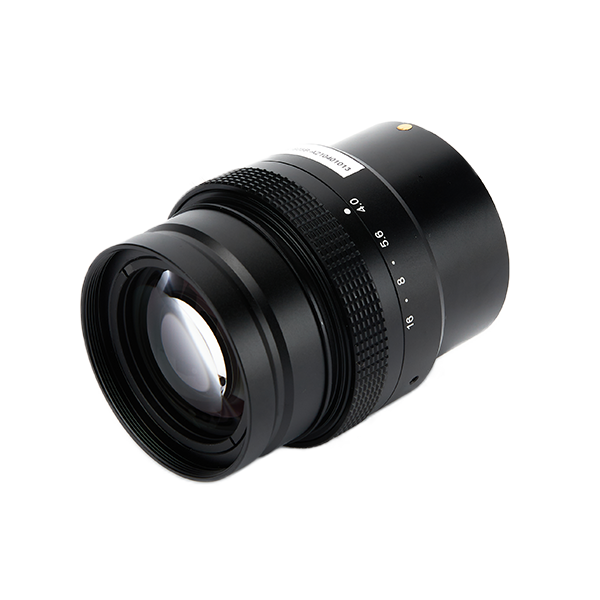

LS1605B

LS1605B

₹ 11,918,830.15

Specially designed for 16K5μ super high resolution line scan camera lens real resolution is upto 160lp/mm
Provide higher contrast for cameras
Max image circle is upto Φ82,
Compatible with 16K3.5μ/12K5µ camera
Optical distortion is <1 pixel size
Magnification from 0.13X-4.5X

SKU: LS1605B Categories: 16K5μ, Industrial Lens, Line Scan Lens

Description

Parameter

F.NO	4.0-16	TV Distortion	0.002%
Magnification Range	0.43-0.57	Standard Magnification	0.5
O/I	636.99	Flange Distance	192.71
Mount	V-Mount（φ56）	Filter Size	M52×P0.75
Focal length	120	Max image circle	φ82
WD	390.66

Additional information

Focus length	120mm
Max image size	φ82
F.NO	4.0-16
TV distortion	0.002%
FOV	/
Magnification range	0.43x-0.57x
Standard magnification	0.5x
WD	390.66
O/I	636.99
Flange distance	192.71
Mount	V-Mount（φ56）
Filter thread	M52×P0.75
Size	φ61.1
Weight（g)	485.9
