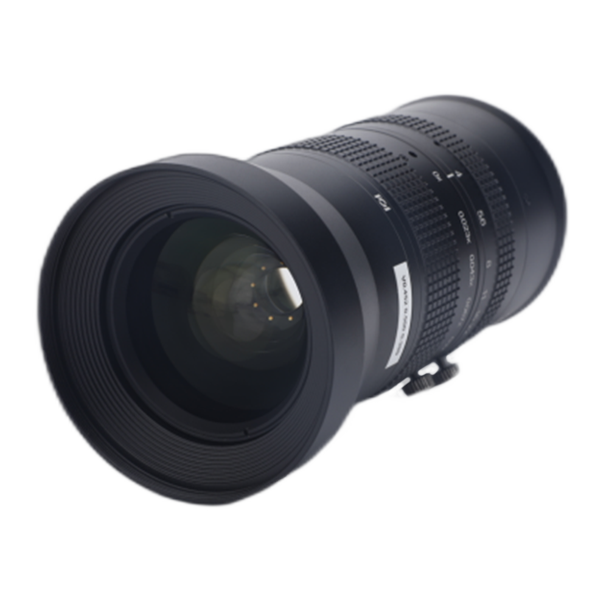

MC3501A

MC3501A

₹ 9,751,770.13

Optimizing optical design for different magnifications
The floating focus structure design is adopted to effectively ensure that the lens still has good optical performance under a wide range of working distances
Suitable for high-precision detection of liquid crystal, semiconductor, electronic parts, etc.

SKU: MC3501A Categories: 8K5μ, Industrial Lens, Line Scan Lens

Description

Parameters

F.NO	4.0-22	TV Distortion	﹤0.7%
Magnification Range	0.001-0.2	Standard Magnification	0.067
O/I	642.56	Flange Distance	12
Mount	M58×P0.75	Filter Size	M67×P0.75
Focal length	35	Max image circle	φ42
WD	500

Additional information

Focus length	35mm
Max image size	φ42
F.NO	4.0-22
TV distortion	﹤0.7%
FOV	59°（D）
Magnification range	0.001x-0.2x
Standard magnification	0.067x
WD	500
O/I	642.56
Flange distance	12
Mount	M58×P0.75
Filter thread	M67×P0.75
Size	φ69.42×130.56
Weight（g)	742.29
