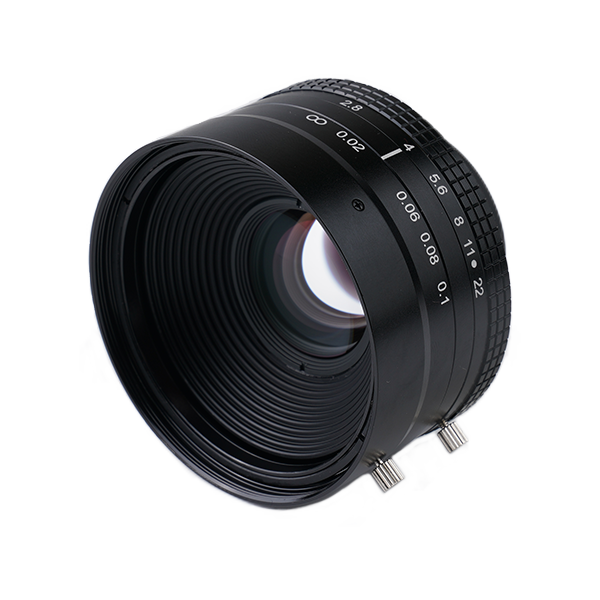

MF5001C

MF5001C

₹ 59,913.45

The maximum image area can reach Φ43, supporting 29 million pixel sensor
Compatible with 4K line scan cameras, corresponding to 5μ/7μ pixels
Optical performance much better than SLR lenses
Standard focal lengths and magnifications are available
Suitable for printing and packaging inspection

SKU: MF5001C Categories: 29MP, Industrial Lens, Large Format Lens

Description

Parameters

EFL	50mm	Max image circle	φ43
F.NO	2.8-22	TV Distortion	0.2%
Magnification Range	0.02x-0.1x	Standard Magnification	0.06x
WD	862.1	Flange Distance	46.5
Mount	F-Mount	Filter Size	M62×P0.75
O/I	942.2	Weight	240.2

Additional information

F.NO	2.8-22
TV distortion	0.2%
FOV	45.5°（D）
Standard magnification	0.06x
WD	862.1
O/I	942.2
Flange distance	46.5
Large Focus length	50mm
Large Resolution	29MP
Large Max image size	φ43
Large Magnification range	0.02x-0.1x
Large Mount	F-Mount
Large Filter thread	M62×P0.75
