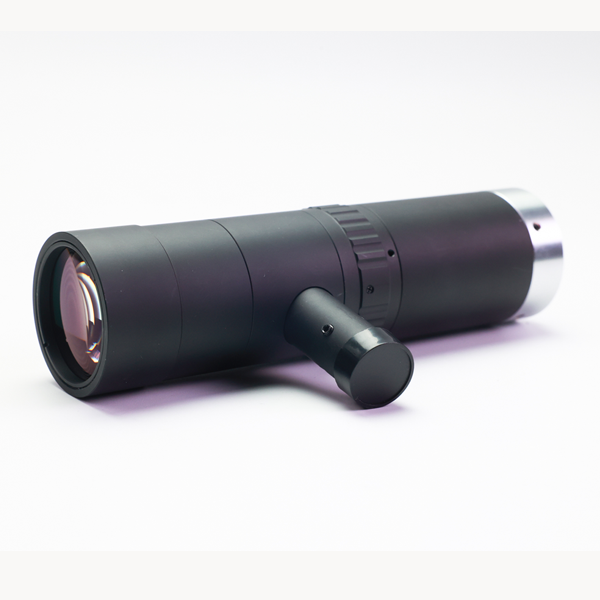

Description
Illumination Type: Coaxial
Sensor: 1.1″
Magnification: 2x
WD: 110mm
F.NO: 10-22
Nd: 0.1
Telecentricity: ﹤0.02°
TV distortion: ﹤0.03%
DOF(mm): 504.394
Object-Side Resolution: 3.36um
TTL: 164.5
Mount: C-Mount
1.1 inch FOV(D×H×V): 8.8×7×5.1
23 inch FOV(H×V): 6.4×4.8
2/3 inch FOV(H×V): 4.4×3.3
Size: φ40×147
Additional information
| Tc Illumination Type | Coaxial |
|---|---|
| Tc Sensor | 1.1" |
| Tc Magnification | 2x |
| Tc Telecentricity | ﹤0.02° |
| Tc Mount | C-Mount |
