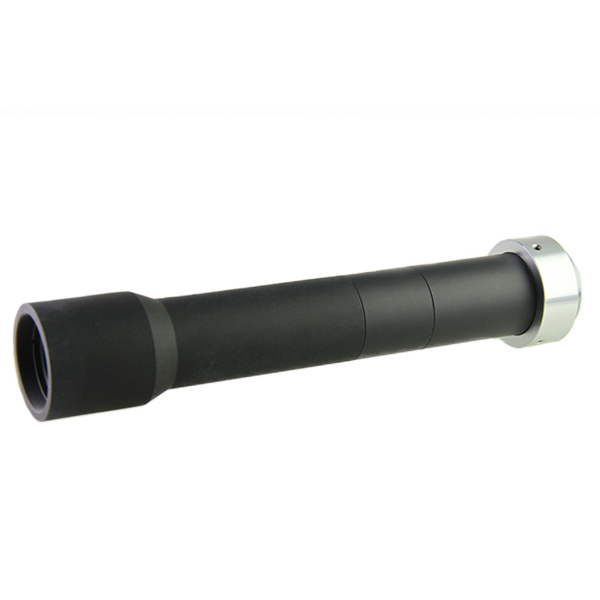

Adopt double telecentric (object side, image side) design
Proprietary identification of features such as integrated circuits, glass, LCD panels, etc.
Easy for automated high speed operations.
Parameters
| EFL | None- coaxial Illumination | Sensor size | 2/3″ |
| Magnification（x） | 0.31x | MOD | 110 |
| F.NO | 35 | Numerical aperture | 0.085 |
| Telecentric degree | <0.1° | TV Distortion | <0.02% |
| Depth of field | 0.044 | Object Resolution | 3.95um |
| TTL | 174.74 | Mount | C-Mount |
| 2/3″FOV(D×H×V) | 1.83×1.46×1.1 | Magnification | 6 |
| WD | 110mm |
