Description
Standards

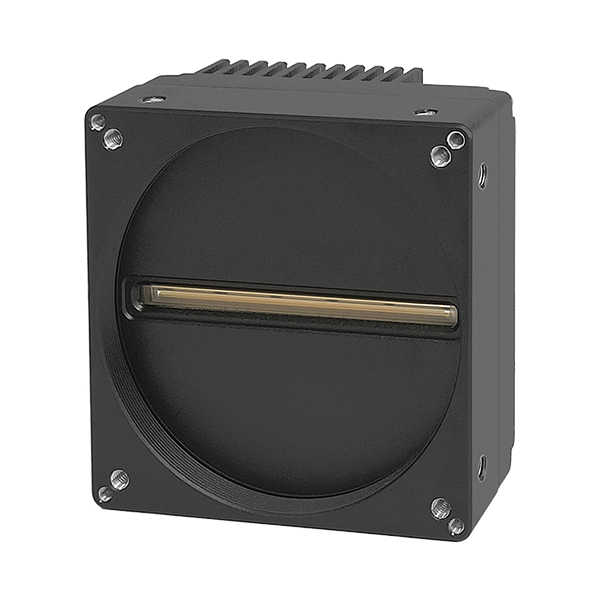

| Model | PL8KCL-33KC |
| Sensor | Global Shutter CMOS |
| Image Mode | Color |
| Optical Size | 41.60 mm |
| Resolution | 8K |
| Pixel Size | 5μm * 5μm |
| Max Line Rate | 9.9kHz@1Tap,19.6kHz@2Tap,33.0kHz@3Tap |
| Bit Depth | 8/10 bit |
| Dynamic Range | ≥58 dB |
| Data Rate | 820 MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Exposure Control | Pulse width / Program |
| Exposure Time | 1μs-63997μs(Step:0.013μs) |
| Analog Gain | 1/2/4x |
| Digital Gain | 0.01-8.00x |
| Data Interface | Camera Link |
| Lens Mount | M72 / F Mount |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12V±10% 2.0A |
| Power Dissipation | 15.3 W |
| Dimensions | 79.6mm x 139.5mm x 71.5mm |
| Operating Temperature | 0-50℃ |
| Storage Temperature | -20-75℃ |
Additional information
| Data Interface | Camera Link |
|---|---|
| Line Resolution | 8K |
| Line Horizontal Resolution | 8,320 |
| Line Vertical Resolution | 12 |
| Line Rate | 33 |
| Line Sensor | GL0816 |
| Sensor Type | Global CMOS |
| Line Lens Mount | M72/F Mount |
| Mono/Color | Color |
