Description
Standards

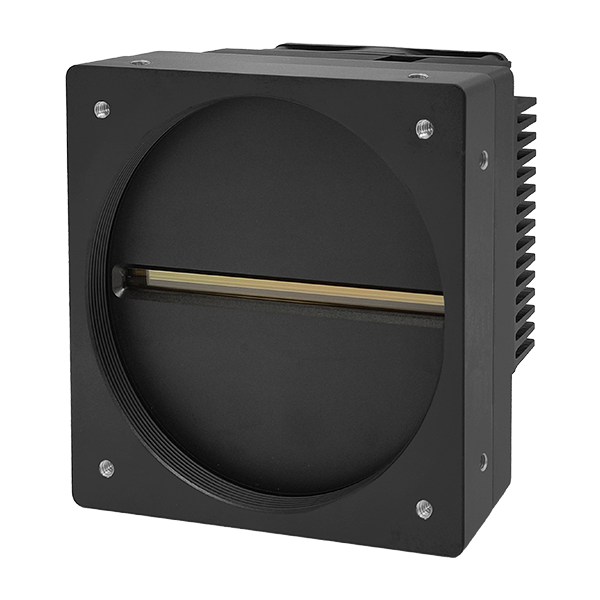

| Model | PR16KCXP10-80KT |
| Image Sensor | Global Shutter CMOS |
| Image Mode | Mono |
| Optical Size | 81.92 mm |
| Resolution | 2K |
| Pixel Size | 5μm * 5μm |
| Max Line Rate | 89.7kHz@8/10bit |
| Bit Depth | 8/10bit |
| Dynamic Range | ≥64.8 dB |
| Data Rate | 1840 MB/s |
| Trigger Mode | Line Trigger / Frame Trigger |
| Exposure Control | External PWM, Timed |
| Exposure Time | 3μs – 63997μs(Step:0.0125μs) |
| Analog Gain | 1/2/4/8x |
| Digital Gain | 0.1-8.0x |
| Lens Mount | M90 * 1 |
| Data Interface | CoaXPress10 |

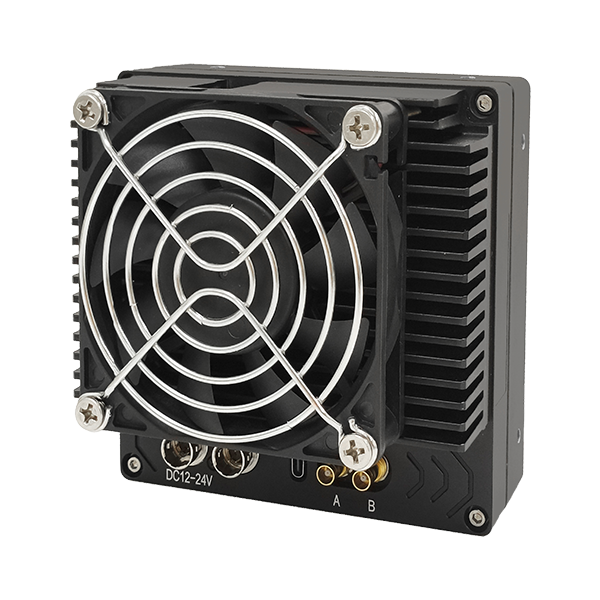

| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 2A |
| Power Dissipation | 14.4 W |
| Dimensions | 99.0mm(W) x 99.0mm(H) x 73.0mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
Additional information
| Data Interface | CXP10 |
|---|---|
| Line Resolution | 16K |
| Line Horizontal Resolution | 16,384 |
| Line Vertical Resolution | 2 |
| Mono/Color | Mono |
| Line Rate | 89.7 |
| Line Pixel Size | 5 |
| Line Sensor | P5016 |
| Sensor Type | Global CMOS |
| Line Lens Mount | M90*1 |
