Description
Standards

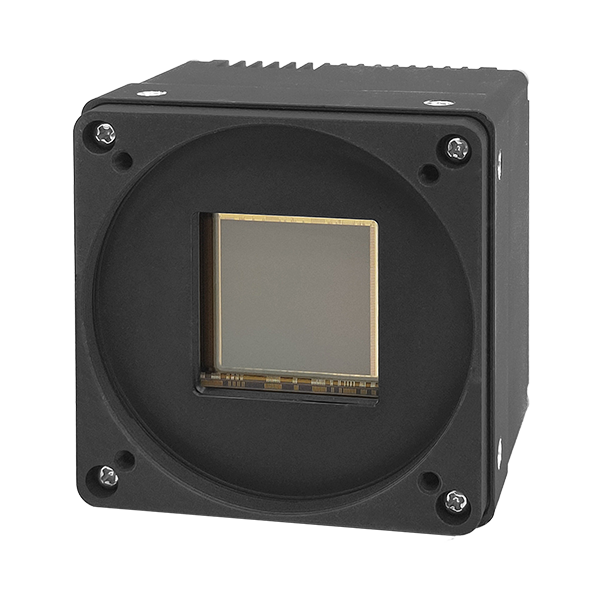

| Model | TS25MGV-10M |
| Sensor Type | Global Shutter CMOS |
| Image Mode | Mono |
| Optical Size | 32.58 mm |
| Resolution | 5120 * 5120 |
| Pixel Size | 4.5μm * 4.5μm |
| Max Frame Rate | 4.72fps(10fps with SAccel™) |
| Data Format | 8/10/10p |
| Dynamic Range | ≥55 dB |
| Data Rate | 124 MB/s (262MB/s with SAccelTM) |
| Trigger Mode | Free Run / External Trigger |
| Exposure Control | Program / Pulse Width |
| Exposure Time | 1μs-10s(Step:1μs) |
| Analog Gain | 1/1.26/1.87/3.17x |
| Digital Gain | 0.01-8.00x |
| Lens Mount | M58 / F Mount |
| Data Interface | GigE Vision |
| Power Connector | HR10A-10R-12PB(71)(Male) |
| Power Supply | DC12-24V(±10%) 1A or PoE power supply |
| Power Consumption | 6.7W (DC Power) / 7.4W (PoE) |
| Dimensions | 62.0mm(W) x 62.0mm(H) x 54.3mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
Additional information
| Horizontal Resolution | 5,120 |
|---|---|
| Vertical Resolution | 5,120 |
| Rate (kHz/fps) | 10(4.72) |
| Area Scan Data Interface | GigE |
| Area Resolution | 25MP |
| Area Mono/Color | Mono |
| Area Scan Sensor | NOIP1SN025KA |
| Area Sensor Type | Global CMOS |
| Pixel Size (μm) | 4.5 |
| Lens Mount | M58/F Mount |
