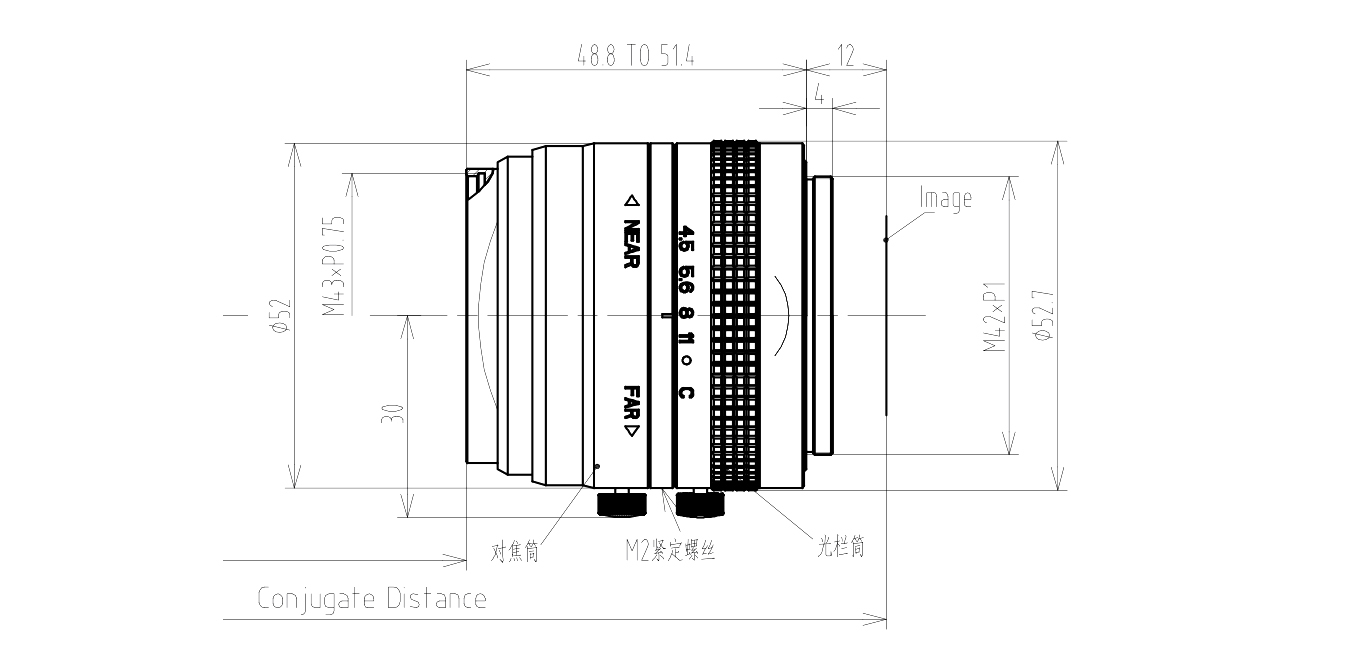

LS2003C


Parameters

F.NO 4.5-C TV Distortion 0.2%
Magnification Range 0.02-0.1 Standard Magnification 0.0358
O/I 619.1 Flange Distance 12
Mount M42×P1 Filter Size M43×P0.75
Focal length 20 Max image circle φ30
WD 557.4

LS2003C


LS2502B


Parameters

F.NO 2.8-16 TV Distortion 0.6%
Magnification Range 0.03-0.2 Standard Magnification 0.121
O/I 269.5 Flange Distance 12
Mount M42×P1 Filter Size M49×P0.75
Focal length 25 Max image circle φ32
WD 200


LS2801A


Parameters

F.NO 4.0-C TV Distortion 0.1%
Magnification Range 0.05-0.3 Standard Magnification 0.1
O/I 368 Flange Distance 26
Mount V-Mount（φ42.5） Filter Size M35×P0.5
Focal length 29 Max image circle φ30
WD 299.7


LS3508A


Parameters

F.NO 4.5-16 TV Distortion ﹤0.01%
Magnification Range 0.04-0.1 Standard Magnification 0.08
O/I 574.5 Flange Distance 37.42
Mount V-Mount（φ38） Filter Size M37×P0.75
Focal length 35 Max image circle φ30
WD 508.49


LS4010A


Parameters

F.NO 2.8-22 TV Distortion 0.5%
Magnification Range 0.04-0.33 Standard Magnification 0.1
O/I 498.48 Flange Distance 39.62
Mount V-Mount（φ38） Filter Size M37×P0.75
Focal length 40 Max image circle φ43.2
WD 429.9


LS4105B


Focus length: 40mm
Max image size: φ60
F.NO: 4.0-22
TV distortion: ﹤0.2%
FOV: 71°
Magnification range: 0.02x-0.16x
Standard magnification: 0.05x
WD: 818.8
O/I: 943.08
Flange distance: 12
Mount: M72×P0.75
Filter thread: /
Size: φ61.9×71.5
Relative illumination: /


LS6016A


Focus length: 60mm
Max image size: φ64
F.NO: 4.0-32
TV distortion: 0.19%
FOV: 386.92mm
Magnification range: 0.04x-0.33x
Standard magnification: 0.167x
WD: 404.4
O/I: 496.32
Flange distance: 63.31
Mount: V-Mount（φ38）
Filter thread: M37×P0.75
Size: φ46.4
Relative illumination: 45%


LS6017A


Focus length: 60mm
Max image size: φ60
F.NO: 4.0-22
TV distortion: ≤0.03%
FOV: /
Magnification range: 0.04x-0.5x
Standard magnification: 0.17x
WD: 403.7
O/I: 522.56
Flange distance: 51.75
Mount: V-Mount（φ38）
Filter thread: M40.5×P0.5
Size: φ43.6×68.48
Weight (g): 250
Relative illumination: 50%


LS8003A


Focus length: 80mm
Max image size: φ64
F.NO: 5.6-32
TV distortion: ﹤0.01%
FOV: /
Magnification range: 0.2x-0.4x
Standard magnification: 0.3x
WD: 320.26
O/I: 451.78
Flange distance: 102.92
Mount: V-Mount（φ38）
Filter thread: M37×P0.75
Size: φ46.4
Weight (g): 124
Relative illumination: 68%


LS8014A


Focus length: 80mm
Max image size: φ62
F.NO: 5.6-32
TV distortion: 0.05%
FOV: /
Magnification range: 0.07x-0.3x
Standard magnification: 0.1x
WD: 745
O/I: 850.6
Flange distance: 75.79
Mount: V-Mount（φ38）
Filter thread: M39.6×P0.5
Size: φ46.4
Weight (g): 613.1
Relative illumination: /


LS8020A


Focus length: 80mm
Max image size: φ62
F.NO: 5.6-32
TV distortion: 0.05%
FOV: /
Magnification range: 0.194x-0.233x
Standard magnification: 0.21x
WD: 418.85
O/I: 533.67
Flange distance: 85.54
Mount: V-Mount（φ38）
Filter thread: M39.6×P0.5
Size: φ46.4
Relative illumination: /


LS9001A


Parameters

F.NO 4.0-16 TV Distortion 0.01%
Magnification Range 0.08-0.14 Standard Magnification 0.1
O/I 1123.5 Flange Distance 82.7
Mount V-Mount（φ56） Filter Size M58×P0.75
Focal length 90 Max image circle φ64
WD 992.4


LS9005A


Parameters

F.NO 4.0-16 TV Distortion 0.005%
Magnification Range 0.03-0.08 Standard Magnification 0.05
O/I 2112.94 Flange Distance 81.2
Mount V-Mount（φ56） Filter Size M58×P0.75
Focal length 95 Max image circle φ62
WD 1980.85


LS9801A


Focus length: 98.7mm
Max image size: φ38
F.NO: 4.8-16
TV distortion: 0.10%
FOV: ±13.8°
Magnification range: 0.32x-0.4x
Standard magnification: 0.36x
WD: 314.3
O/I: 482.5
Flange distance: 117.1
Mount: V-Mount（φ56）
Filter thread: M58×P0.75
Size: φ59.8×51
Relative illumination: /


MC2501A


Parameters

F.NO 4.0-22 TV Distortion ﹤0.2%
Magnification Range 0.001-0.2 Standard Magnification 0.1
O/I 371.09 Flange Distance 12
Mount M58×P0.75 Filter Size M95×P1.0
Focal length 25 Max image circle φ46
WD 220


MC2501A


Parameters

Focus length: 25mm
Resolution: 65MP
Max image size: φ46
Magnification range: 0.001x-0.2x
Large Mount: M58×P0.75
Large Filter thread: M95×P1.0


MC2501M


Focus length: 25mm
Max image size: φ46
F.NO: 4.0-22
TV distortion: ﹤0.2%
FOV: M95×P1
Magnification range: 0.001x-0.2x
Standard magnification: 0.1x
WD: 220
Flange distance: 11.48
Mount: M58×P0.75
Size: φ111.4×139.61
voltage: 12V
Communication method: RS232
Speed range: 80-120RPM
Motion precision: ±0.01°
Response time: ﹤1ms
Controller: Internal Controller


MC3501A


Parameters

F.NO 4.0-22 TV Distortion ﹤0.7%
Magnification Range 0.001-0.2 Standard Magnification 0.067
O/I 642.56 Flange Distance 12
Mount M58×P0.75 Filter Size M67×P0.75
Focal length 35 Max image circle φ42
WD 500


MC3501A


Parameters

Focus length: 35mm
Resolution: 65MP
Max image size: φ42
Magnification range: 0.001x-0.2x
Mount: M58×P0.75
Filter thread: M67×P0.75


MC5001A


Parameters

F.NO 3.6-22 TV Distortion ﹤0.2%
Magnification Range 0.02-0.5 Standard Magnification 0.16
O/I 444 Flange Distance 12
Mount M58×P0.75 Filter Size M62×P0.75
Focal length 50 Max image circle φ46
WD 300
