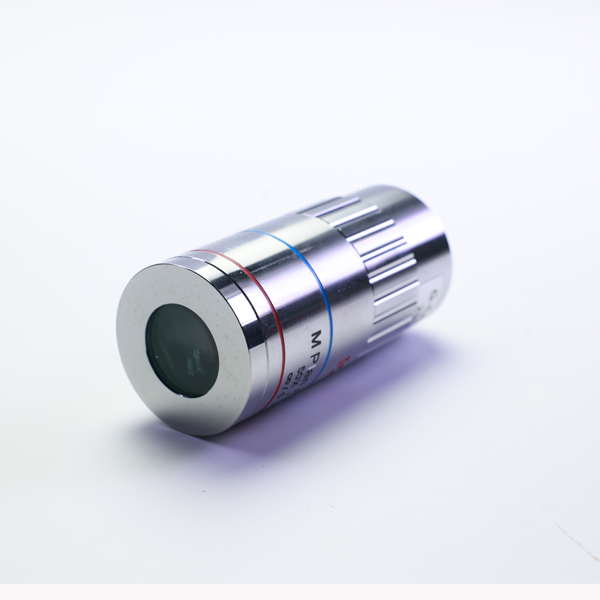

Description
Focus length: 4mm
Sensor: 1.4″
Magnification: 50x
WD: 10mm
Numerical Aperture: 0.67
Object Resolution: 0.41um
DOF: 0.61um
Wavelength: 420-1100nm
Objective Mount: M26×P0.706
1.4 inch FOV(H×V): 0.38×0.26
1.1 inch FOV(H×V): 0.28×0.21
2/3 inch FOV(H×V): 0.17×0.13
1/2 inch FOV(H×V): 0.128×0.09
Size: φ40.5×85
Additional information
| WD | 10mm |
|---|---|
| Numerical Aperture | 0.67 |
| Object Resolution | 0.41um |
| DOF | 0.61um |
| Wavelength | 420-1100nm |
| 1.4 inch FOV(H×V) | 0.38×0.26 |
| 2/3 inch FOV(H×V) | 0.17×0.13 |
| Micro Focus length | 4mm |
| Micro Sensor | 1.4" |
| Micro Magnification | 50x |
| Micro Objective Mount | M26×P0.706 |
