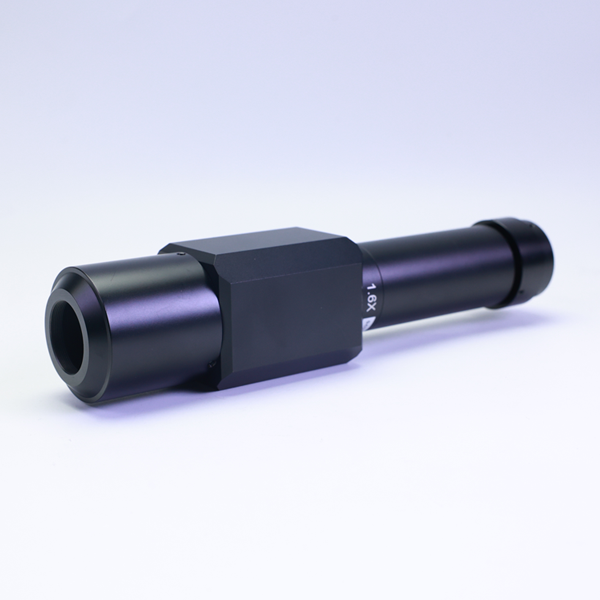

Description
Illumination Type: Non-Coaxial
Focus length: 320mm
Sensor: 1.4″
Magnification: 1.6x
Wavelength: 420-680nm
Tube Lens Mount: M26×P0.706
Tube Length: 226.88
Flange distance: 17.526
Mount: C-Mount
1.4 inch FOV(H×V): 11.92×8.17
1.1 inch FOV(H×V): 8.81×6.62
2/3 inch FOV(H×V): 5.5×4.12
1/2 inch FOV(H×V): 4×3
Size: φ50×226.88
Additional information
| Wavelength | 420-680nm |
|---|---|
| Tube Lens Mount | M26×P0.706 |
| Tube Length | 226.88 |
| Flange distance | 17.526 |
| 1.4 inch FOV(H×V) | 11.92×8.17 |
| Micro Illumination Type | Non-Coaxial |
| Micro Focus length | 320mm |
| Micro Sensor | 1.4" |
| Micro Magnification | 1.6x |
| Micro Mount | 1.6x |
