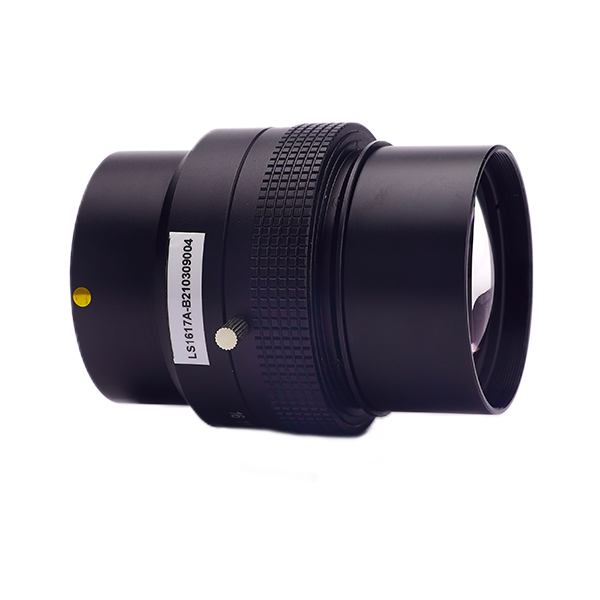

LS1617A

LS1617A

₹ 9,751,770.13

Specially designed for 16K5μ super high resolution line scan camera lens real resolution is upto 160lp/mm
Provide higher contrast for cameras
Max image circle is upto Φ82,
Compatible with 16K3.5μ/12K5µ camera
Optical distortion is <1 pixel size
Magnification from 0.13X-4.5X

SKU: LS1617A Categories: 16K5μ, Industrial Lens, Line Scan Lens

Description

Parameters

F.NO	3.8-16	TV Distortion	0.05%
Magnification Range	1.65-1.73	Standard Magnification	1.7
O/I	470	Flange Distance	286.1
Mount	V-Mount（φ49）	Filter Size	M45×P0.5
Focal length	116	Max image circle	φ84
WD	137.8

Additional information

Focus length	116mm
Max image size	φ84
F.NO	3.8-16
TV distortion	0.05%
FOV	38.8mm
Magnification range	1.65x-1.73x
Standard magnification	1.7x
WD	137.8
O/I	470
Flange distance	286.1
Mount	V-Mount（φ49）
Filter thread	M45×P0.5
Size	φ55.7
Weight（g)	330
