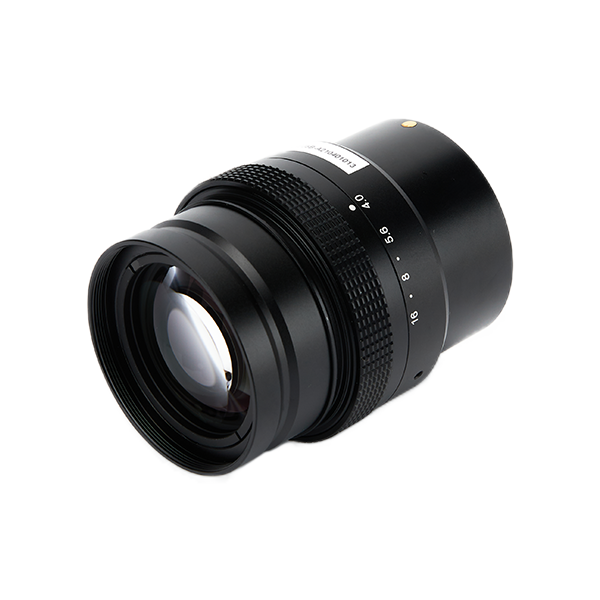

LS1626B

LS1626B

₹ 11,918,830.15

Specially designed for 16K5μ super high resolution line scan camera lens real resolution is upto 160lp/mm
Provide higher contrast for cameras
Max image circle is upto Φ82,
Compatible with 16K3.5μ/12K5µ camera
Optical distortion is <1 pixel size
Magnification from 0.13X-4.5X

SKU: LS1626B Categories: 16K5μ, Industrial Lens, Line Scan Lens

Description

Parameters

F.NO	3.8-16	TV Distortion	0.001%
Magnification Range	0.22-0.3	Standard Magnification	0.26
O/I	874.3	Flange Distance	160.95
Mount	V-Mount（φ49）	Filter Size	M50×P0.5
Focal length	116	Max image circle	φ82
WD	663.34

Additional information

Focus length	116mm
Max image size	φ82
F.NO	3.8-16
TV distortion	0.001%
FOV	/
Magnification range	0.22x-0.3x
Standard magnification	0.26x
WD	663.34
O/I	874.3
Flange distance	160.95
Mount	V-Mount（φ49）
Filter thread	M50×P0.5
Size	φ55.7
Weight（g)	395.4
