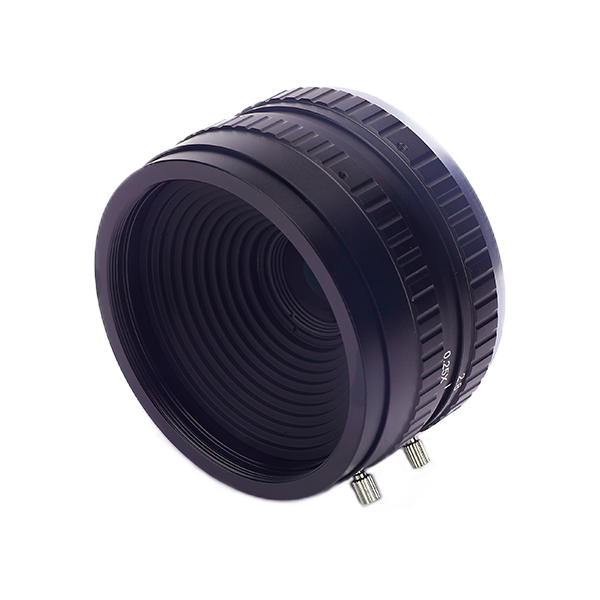

MF4010A

MF4010A

₹ 59,913.45

The maximum image area can reach Φ43, supporting 29 million pixel sensor
Compatible with 4K line scan cameras, corresponding to 5μ/7μ pixels
Optical performance much better than SLR lenses
Standard focal lengths and magnifications are available
Suitable for printing and packaging inspection

SKU: MF4010A Categories: 29MP, Industrial Lens, Large Format Lens

Description

Parameters

EFL	40mm	Max image circle	φ43.2
F.NO	2.8-22	TV Distortion	﹤0.2%
Magnification Range	0.01x-0.25x	Standard Magnification	0.1x
WD	436	Flange Distance	46.5
Mount	F-Mount	Filter Size	M62×P0.75
O/I	468.67

Additional information

F.NO	2.8-22
TV distortion	﹤0.2%
FOV	402.9mm
Standard magnification	0.1x
WD	436
O/I	468.67
Flange distance	46.5
Large Focus length	40mm
Large Resolution	29MP
Large Max image size	φ43.2
Large Magnification range	0.01x-0.25x
Large Mount	F-Mount
Large Filter thread	M62×P0.75
