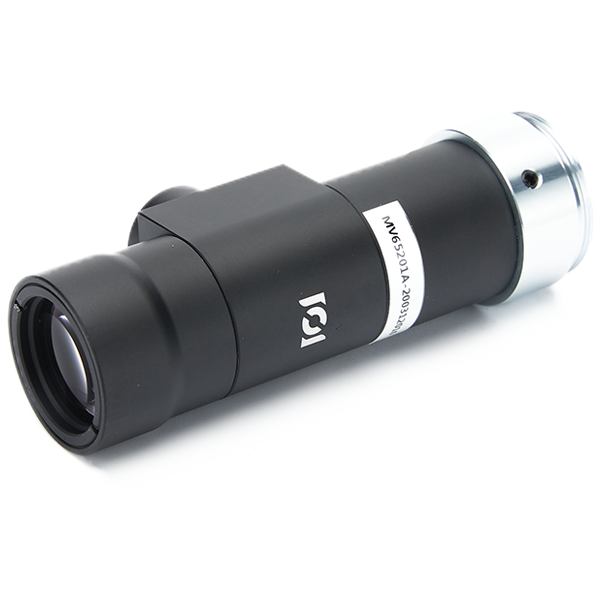

High resolution supports 5MP 2/3″ camera
Adopt double telecentric (object side, image side) design
Proprietary identification of features such as integrated circuits, glass, LCD panels, etc.
Efor automated high speed operations
Parameters
| EFL | Coaxial Illumination | Sensor size | 2/3″ |
| Magnification（x） | 2x | MOD | 65 |
| F.NO | 13.5 | Numerical aperture | 0.074 |
| Telecentric degree | ﹤0.05° | TV Distortion | ﹤0.1% |
| Depth of field | 0.152 | Object Resolution | 4.53um |
| TTL | 97.52 | Mount | C-Mount |
| 2/3″FOV(D×H×V) | 5.5×4.4×3.3 | 1/2″FOV(H×V) | 3.2×2.4 |
| Magnification | 2 | WD | 65mm |
Fixed aperture, manual adjustable aperture is optional
The TV distortion is less than 0.1%
Series focal length covers 4-75mm
Compact design
High contrast industrial FA lens
Fixed aperture, manual adjustable aperture is optional
The TV distortion is less than 0.1%
Series focal length covers 4-75mm
Compact design
High contrast industrial FA lens
Fixed aperture, manual adjustable aperture is optional
The TV distortion is less than 0.1%
Series focal length covers 4-75mm
Compact design
High contrast industrial FA lens
Stable structural design
Resistant to strong vibrations and shocks
Fixed aperture, a variety of aperture specifications optional
Supports 2/3″ 5MP cameras
Suitable for high vibration and high shock environments such as manipulators
