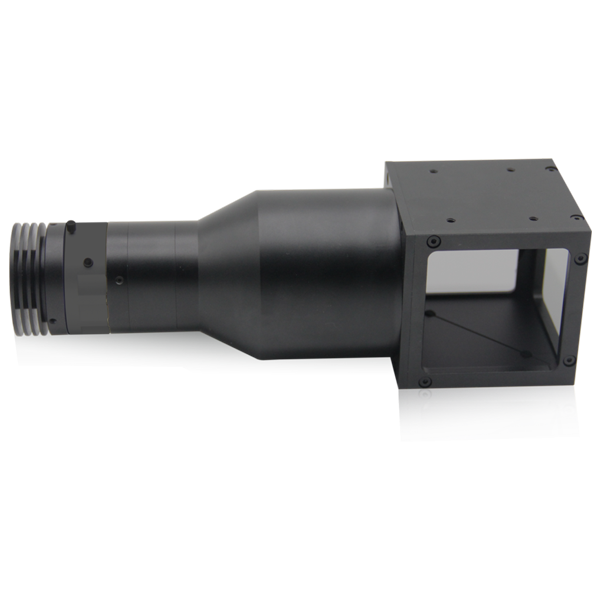

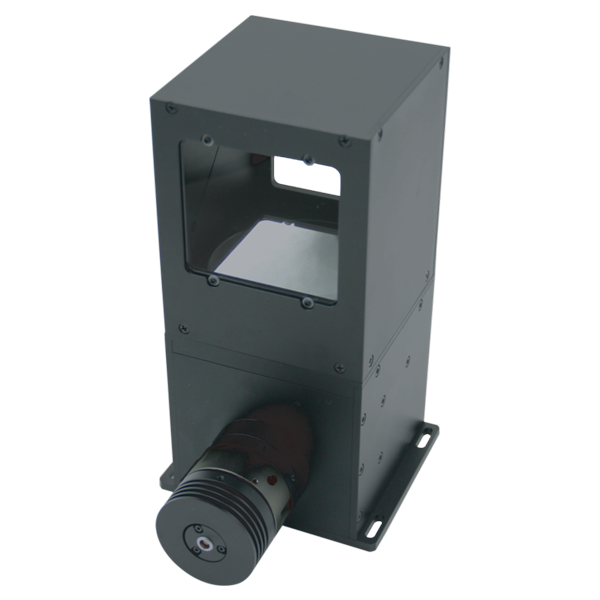

Parallel coaxial light source (COPXP2/COPEX3/COXPL2 series)

High brightness and good uniformity;
Parallel light path design, direct light;
Spectroscopic structure to reduce light loss;
Can be used as backlight, lower cost, small size;
Suitable for print quality inspection, metal size measurement, mobile phone screen slight scratch detection and high reflective object stains, scratches, bump point detection and so on.

Categories: Coaxial light source, Industrial Lights

Description
Reviews (0)

Description

Selection description

JL	–	COPP2	–	60	W
1		2		3	4
1 – The Brand
2, parallel coaxial series
3, luminous surface diameter (mm)
4, the color of the light source (R is red, B is blue, W is white, G is green)

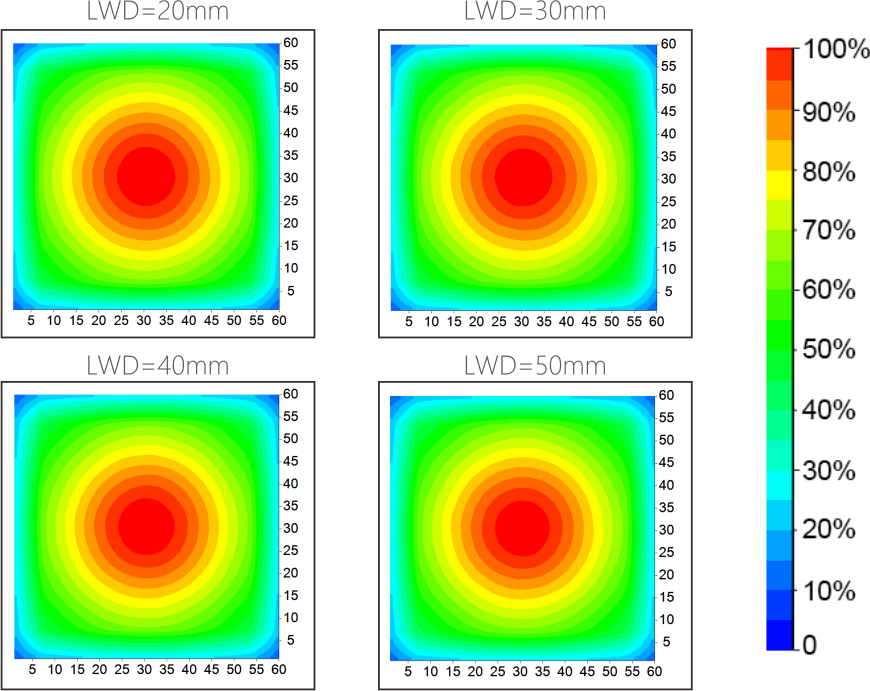

Working Distance and illuminance distribution (JL-COXPL2-80)

Parameters

Model	Voltage/power	Maximum current	Product Size			Weight (g)	The best working distance (Light bar diameter 4mm)	Adaptive controller	Interface
Model	Red/white/blue/green	Maximum current	Length of mm	Width mm	Height of mm	Weight (g)	The best working distance (Light bar diameter 4mm)	Adaptive controller	Interface
JL-COXP2-60	24V/5W	208mA	224	75	50	933.2	0 to 80mm	JL-APS2-24V200mA-4	SM2.54mm 3P(2, 3)
JL-COXP3-40	24V/5.6W	233mA	210	58	58	466.9	0 to 80mm		SM2.54mm 3P(1, 3)
JL-COXPL2-80	24V/5W	208mA	220	100	163	2210	0-100mm		SM2.54mm 3P(2, 3)
