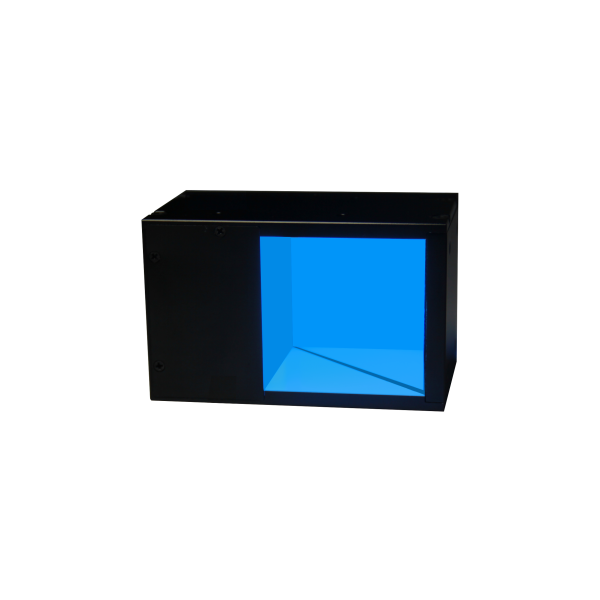

three-color coaxial light source (COX2-RGB series)

Uniform coaxial illumination, high brightness, clear imaging;
RGB three-color arbitrary adjustment, good flexibility;
The light-emitting area is composed of RGB three-color LED, each color can be controlled separately;
It is suitable for laser marking character recognition, high-precision Mark point positioning, chip and silicon wafer damage detection, surface defect detection of highly reflective objects, etc.

Categories: Coaxial light source, Industrial Lights

Description
Reviews (0)

Description

Selection Description

JL	–	COX2	–	50	RGB
1		2		3	4
1. Brand
2, coaxial series
3, luminous area: unit is mm
4, light source color (R is red, B is blue, W is white, G is green, IR infrared, UV ultraviolet)
* infrared, ultraviolet according to non-standard customized product quotation

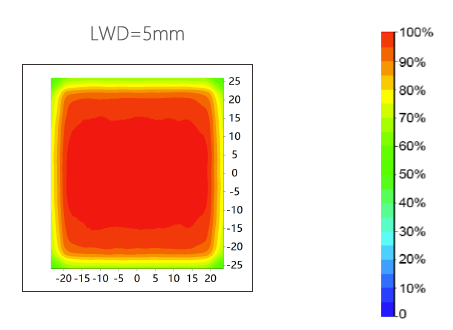

Working distance and illumination distribution (JL-COX2-30RGB)

Parameter table

Model	voltage/power				Product Size			weight (g)	adapter controller	Interface
	red			Blue/Green	length mm	width mm	height mm
JL-COX2-30RGB	24V/2.8W			24V/3.2W	56	38	36	144	JL-DCV-6024-4 Series JL-DCV-15024-4 Series JL-DCV-15024-6 JL-STS3-9624-4	SM2.54mm 3P(1, 3)
JL-COX2-50RGB	24V/2.4W			24V/2.4W	96	60	57	349
