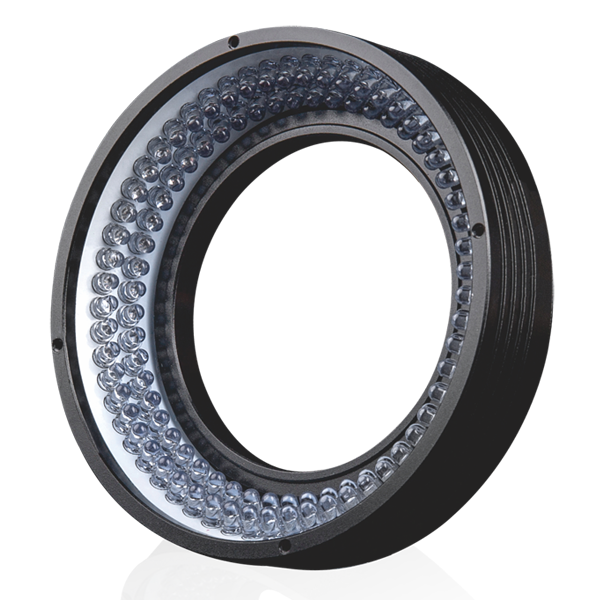

Infrared Light Source (IR Series)

Imported infrared lamp beads, strong light penetration;
Can be customized 850nm, 940nm two wavelengths;
It is suitable for transmission detection, liquid foreign body detection, LCD positioning identification detection, reducing interference detection of coating, medicine (vascular network identification, eyeball positioning), etc.

Categories: Industrial Lights, Special light source

Description
Reviews (0)

Description

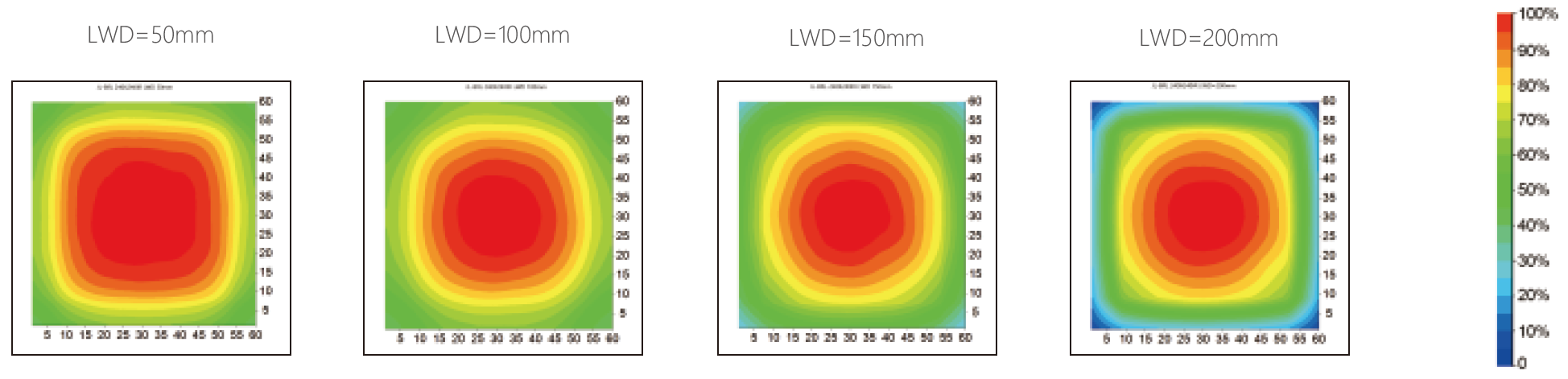

Working Distance And Illumination Distribution (JL-BRL-100X100IR)
d13

Parameter Table

Model	voltage/power	weight (g)	adapter controller	Interface
JL-AR9290IR	24V/6.7W	216	JL-DCV constant pressure series JL-STS3 constant pressure series	SM2.54mm 3P(1, 3)
JL-AR7075IR	24V/3.4W	119
JL-AR7430IR	24V/4.2W	103
JL-AR9030IR	24V/3.9W	123
JL-LR-80 × 19IR	24V/1.7W	61
JL-LR-144 × 19IR	24V/3.9W	90
JL-LR-190 × 19IR	24V/4.2W	107
JL-BRL-50 × 50IR	24V/4.4W	67
JL-BRL-100 × 100IR	24V/7.5W	152
