Description
Selection description
| JL | – | BRP2/BRP3 | – | 50×50 | R |
|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | ||
| 1 – The Brand | |||||
| 2, parallel backlight series | |||||
| 3, luminous area: long x width, unit is mm | |||||

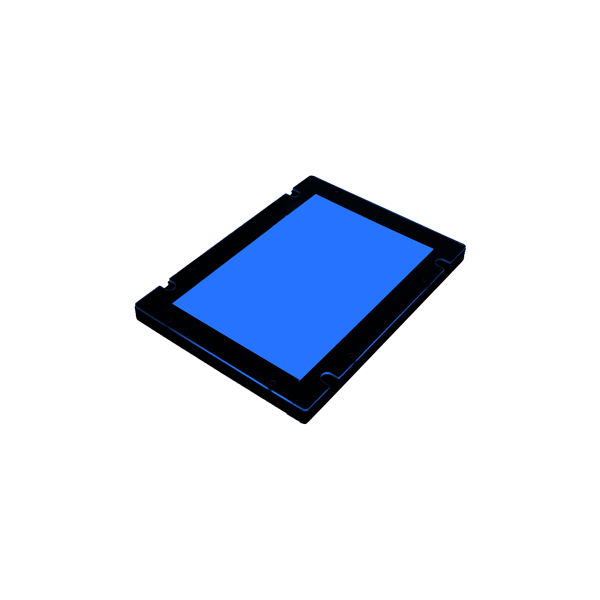

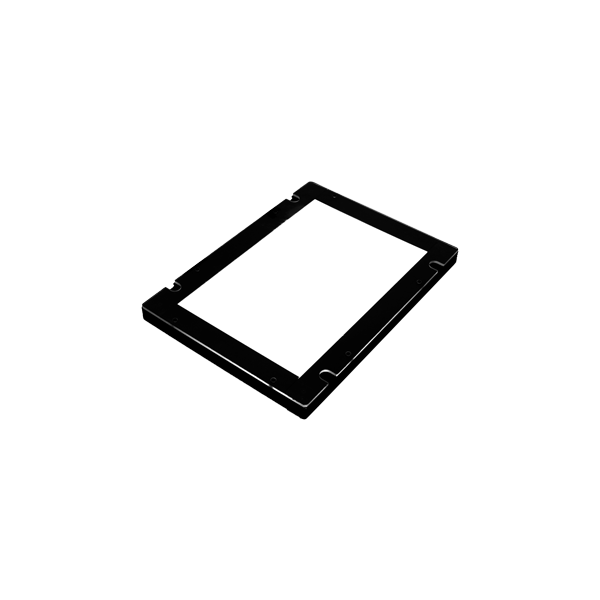

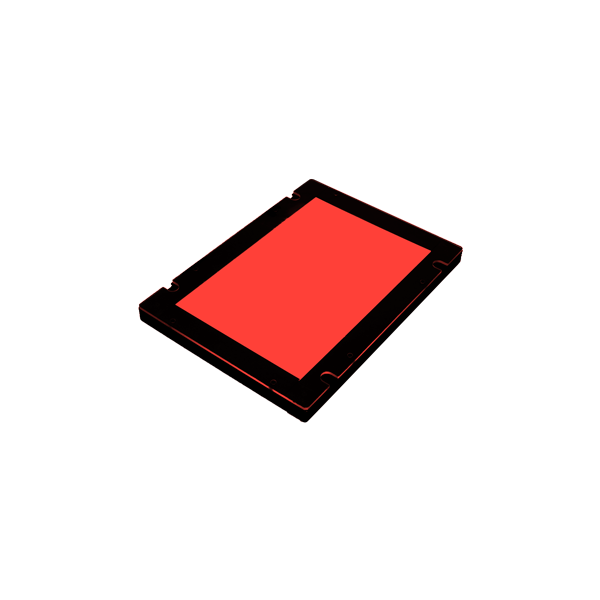

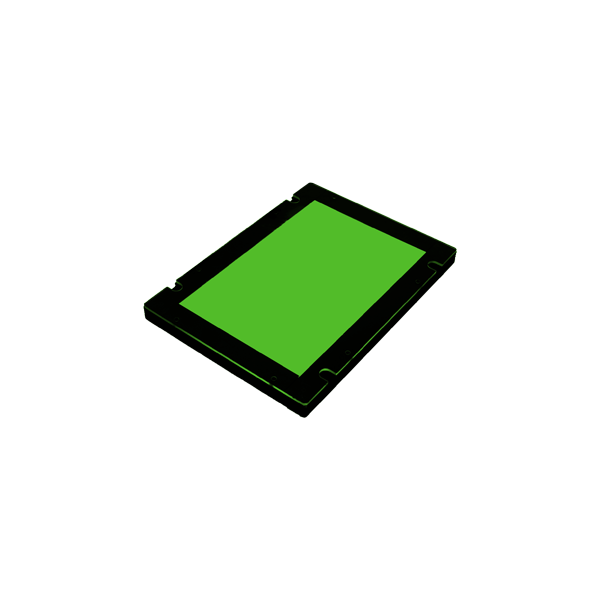

| 4, the color of the light source (R is red, B is blue, W is white, G is green, IR infrared) | |||||
| * Full range of can be added diffuser, infrared according to non-standard customized product quotation | |||||

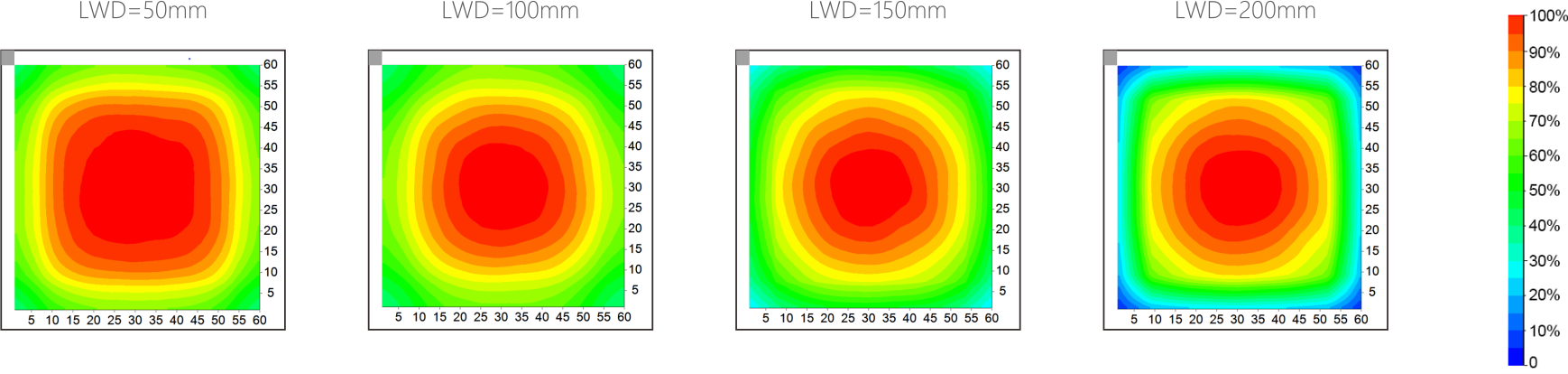

Working Distance and illuminance distribution (JL-BRP3-250X200)
Parameters
| Model | Voltage/power | Product Size | Weight (g) | Adaptive controller | Interface | |||
| Red | White/Blue/Green | Length of mm | Width mm | Height of mm | ||||
| JL-BRP2-50X50 | 24V/5.2W | 24V/9W | 84 | 84 | 12.5 | 166 | JL-DCV Constant Press Series
JL-STS3 Constant Press Series |
SM2.54mm 3P(1, 3) |
| JL-BRP2-70X70 | 24V/8.2W | 24V/8.8W | 104 | 104 | 12.5 | 239 | ||
| JL-BRP2-90X90 | 24V/11W | 24V/13.2W | 124 | 124 | 12.5 | 323 | ||
| JL-BRP3-110X110 | 24V/11.5W | 24V/17.5W | 144 | 144 | 12.5 | 424 | ||
| JL-BRP3-150X100 | 24V/15W | 24V/18W | 184 | 134 | 12.5 | 489 | ||
| JL-BRP3-200X160 | 24V/19.1W | 24V/28W | 234 | 194 | 12.5 | 860 | ||
| JL-BRP3-200X200 | 24V/20.6W | 24V/30W | 234 | 234 | 12.5 | 1009 | ||
| JL-BRP3-250X200 | 24V/22.5W | 24V/32.4W | 284 | 234 | 12.5 | 1203 | ||
| JL-BRP3-300X200 | 24V/23.5W | 24V/35.5W | 334 | 234 | 12.5 | 1440 | ||
| JL-BRP3-300X300 | 24V/26W | 24V/36W | 334 | 334 | 12.5 | 1840 | JL-DCV-15024 Series
JL-STS3-7224-2 |
|
| JL-BRP3-400X300 | 24V/32.3W | 24V/45W | 434 | 334 | 12.5 | 2360 | ||
| JL-BRP3-600X400 | 24V/38.8W | 24V/55W | 634 | 434 | 12.5 | 4760 | ||
