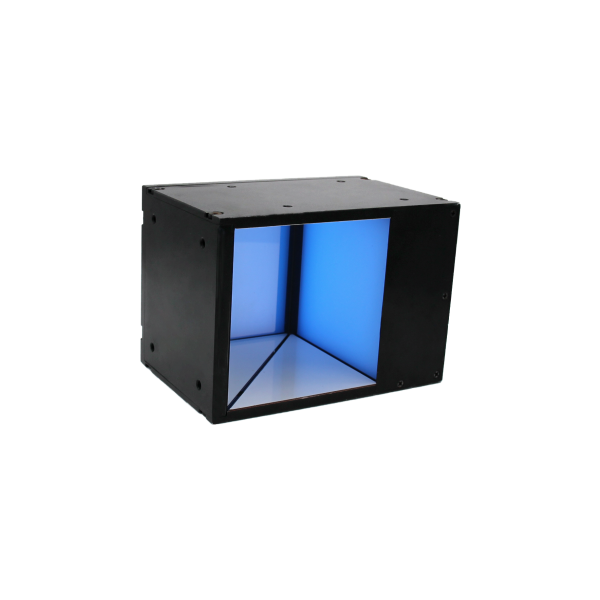

HD Coaxial Light Source (COX3 Series)

Using high-definition spectroscope, high definition;
High contrast, high resolution imaging;
High uniform diffusion plate, uniform brightness;
Reduce the phenomenon of light ghosting, high precision;
Compared to the COX2 series, brightness, clarity are high;
It is suitable for laser marking character recognition, high-precision Mark point positioning, chip and silicon wafer damage detection, surface defect detection of highly reflective objects, etc.

Categories: Coaxial light source, Industrial Lights

Description
Reviews (0)

Description

Selection Description

JL	–	COX3	–	50	W
1		2		3	4
1. Brand
2, HD coaxial series
3, luminous surface area, unit is mm
4. Light source color (R is red, B is blue, W is white, G is green, IR is infrared, UV is ultraviolet)
* infrared, ultraviolet according to non-standard customized product quotation

Working Distance And Illumination Distribution (JL-COX3-60)

Parameter table

Model	voltage/power		Product Size			weight (g)	adapter controller	Interface
Model	red	White/Blue/Green	length mm	width mm	height mm	weight (g)	adapter controller	Interface
JL-COX3-40	24V/2.8W	24V/4W	86	50	47	226	JL-DCV constant pressure series JL-STS3 constant pressure series	SM2.54mm 3P(1, 3)
JL-COX3-50	24V/4.6W	24V/5.9W	96	60	57	319
JL-COX3-60	24V/7.5W	24V/10W	106	70	67	425
