Description
Selection Instructions
|
JL |
– |
FSQ |
– |
75X75 |
R |
|---|---|---|---|---|---|
|
1 |
|
2 |
|
3 |
4 |
|
1. Brand |
|||||
|

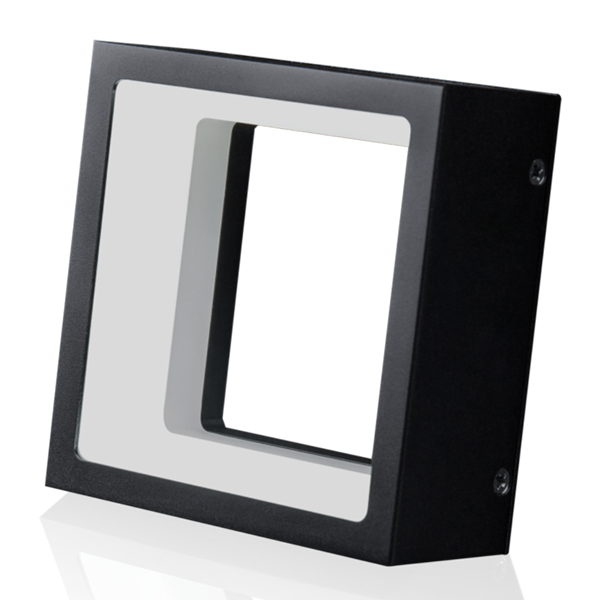

2. Square shadowless light source series |
|||||
|
3. Luminous area: length x width, in mm |
|||||
|
4. Light source color (R is red, B is blue, W is white, G is green, IR is infrared, UV is ultraviolet) |
|||||
|
* Diffuser panels are available for the entire series. Customized prices for infrared and ultraviolet products are available. |
|||||

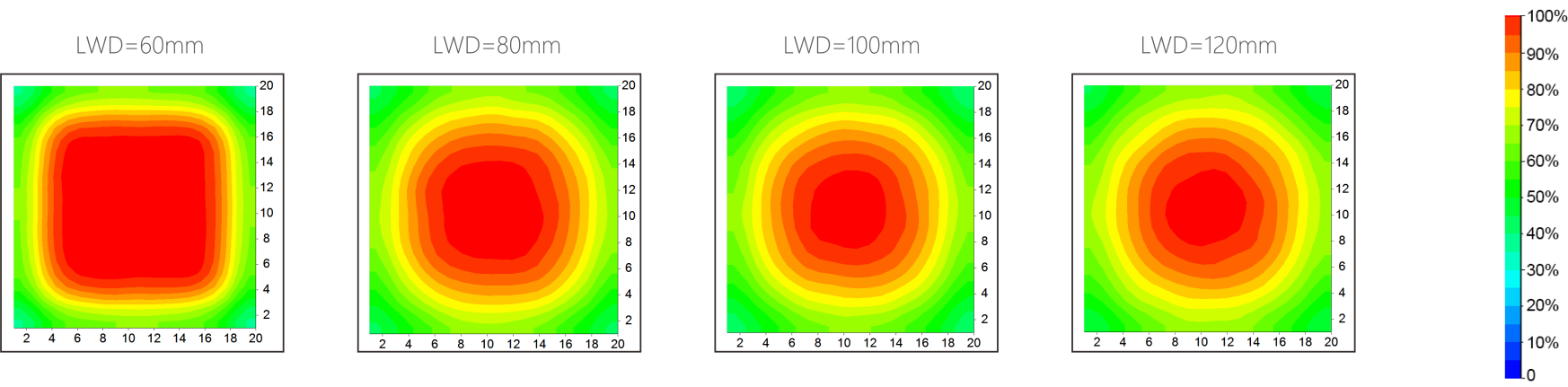

Working distance and illumination distribution (JL-FSQ-150X150)
Parameter Table
| model | Voltage/Power | Product size | Weight (g) | Adaptor controller | interface | |||
| red | White/Blue/Green | Length (mm) | Width (mm) | Height (mm) | ||||
| JL-FSQ-75X75 | 24V/7.2W | 24V/7.4W | 75 | 75 | 30 | 134 | JL-DCV constant pressure seriesJL -STS3 constant pressure series |
SM2.54mm 3P(1, 3) |
| JL-FSQ-150X150 | 24V/6.8W | 24V/12W | 150 | 150 | 30.2 | 287.6 | ||
