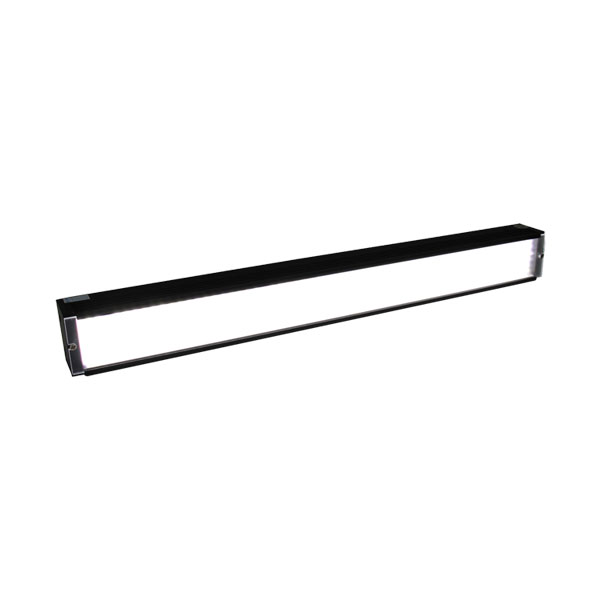

Bar Light Source (LR2 series)

₹ 601,123.61

The illumination angle can be flexibly adjusted, and the light efficiency is high.
It is suitable for lighting large areas and is the preferred light source for large square objects to be measured.
It is suitable for image scanning and inspection, metal surface defect detection, damage and defect detection, character recognition, barcode reading, etc.

Description

Selection Instructions

JL	LR2	500 × 20	R
1	2	3	4
1. Brand
2. Strip Light 2nd Generation Series
3. Luminous area: length × width, unit: mm
4. Light source color (R for red, B for blue, W for white, G for green, IR for infrared, UV for ultraviolet)
* Diffuser panels are available for all series, and IR and UV products are priced according to non-standard customization.

Working Distance And Illumination Distribution (JL-LR2-1000×30W)

d37

Parameter Table

model	Voltage/Power				Product size		Weight (g)	Adaptor controller	interface	Price
model	red	White	blue	green	Length (mm)	Width (mm)	Weight (g)	Adaptor controller	interface	Price
JL-LR2-100×20	24V/1.8W	24V/2.4W			117	26	105	JL-DCV constant pressure seriesJL -STS3 constant pressure series	SM2.54mm 3P(1, 3)	₹ 5,491.88
JL-LR2-200×20	24V/3.7W	24V/4.8W			217	26	210			₹ 8,446.25
JL-LR2-300×20	24V/5.5W	24V/7.1W			317	26	315			₹ 10,041.25
JL-LR2-400×20	24V/7.4W	24V/9.5W			417	26	420			₹ 12,089.38
JL-LR2-500×20	24V/9.2W	24V/11.9W			517	26	525			₹ 15,551.25
JL-LR2-600×20	24V/11.1W	24V/14.3W			617	26	630			₹ 17,363.75
JL-LR2-700×20	24V/12.9W	24V/16.6W			717	26	735			₹ 20,481.25
JL-LR2-800×20	24V/14.8W	24V/19W			817	26	840			₹ 22,982.50
JL-LR2-900×20	24V/16.6W	24V/21.4W			917	26	945			₹ 25,266.25
JL-LR2-1000×20	24V/18.5W	24V/23.8W			1017	26	1050			₹ 28,184.37
JL-LR2-100×30	24V/3.7W	24V/4.8W			117	38	140			₹ 6,380.00
JL-LR2-200×30	24V/7.4W	24V/9.5W			217	38	280			₹ 9,135.00
JL-LR2-300×30	24V/11.1W	24V/14.3W			317	38	420			₹ 11,201.25
JL-LR2-400×30	24V/14.8W	24V/19W			417	38	560			₹ 15,406.25
JL-LR2-500×30	24V/18.5W	24V/23.8W			517	38	700			₹ 17,726.25
JL-LR2-600×30	24V/22.2W	24V/28.5W			617	38	840			₹ 20,644.38
JL-LR2-700×30	24V/25.9W	24V/33.3W			717	38	980			₹ 25,048.75
JL-LR2-800×30	24V/29.6W	24V/38W			817	38	1120			₹ 29,688.75
JL-LR2-900×30	24V/33.3W	24V/42.8W			917	38	1260			₹ 31,175.00
JL-LR2-1000×30	24V/37W	24V/47.5W			1017	38	1400			₹ 36,231.87
