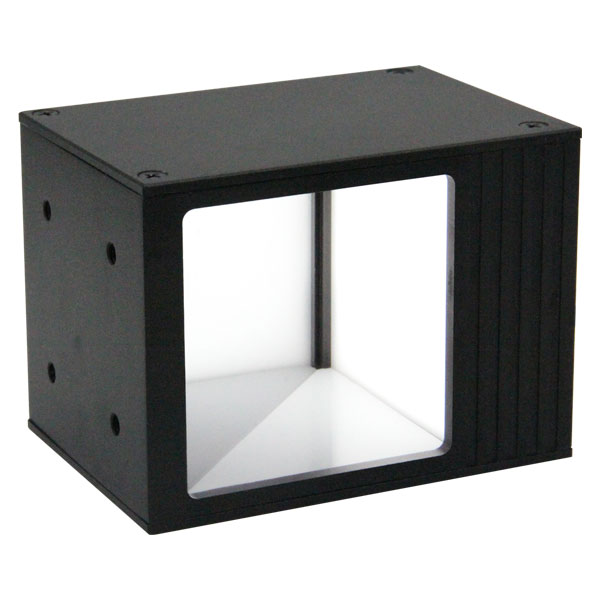

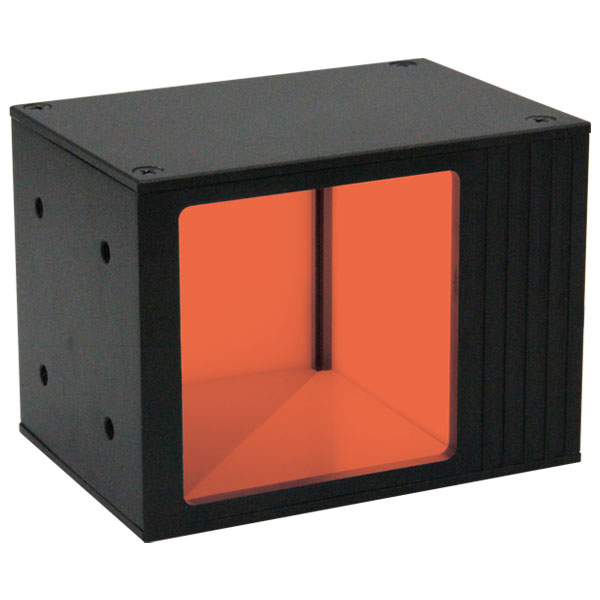

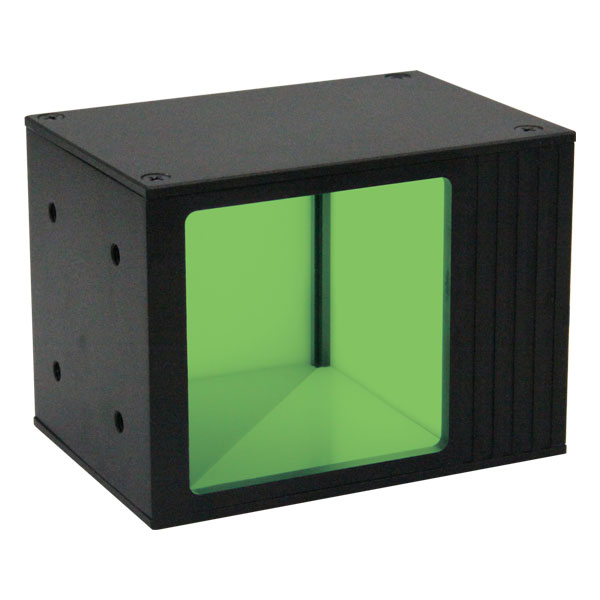

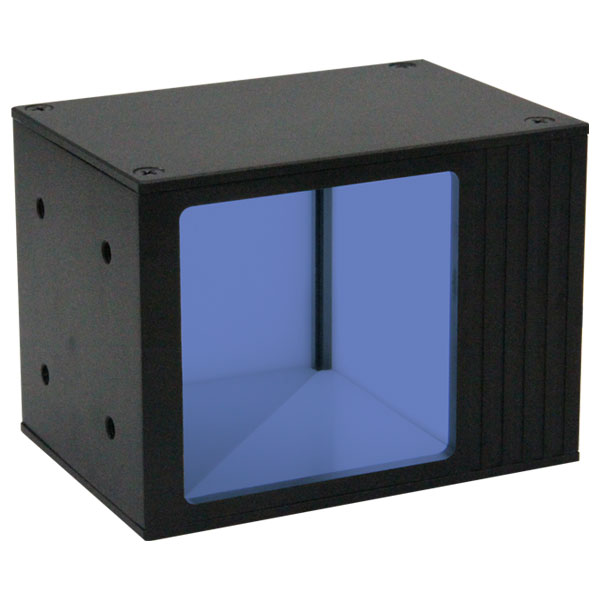

Coaxial Light Source (COX2/COX4 Series)

Internal light mixing design to ensure the uniformity of the spot;
Unique heat dissipation structure, prolong life and improve stability;
Jointly developed a high-definition spectroscope to reduce light loss, high brightness and uniformity, and clear imaging;
Innovative light path design, the fourth generation of coaxial light outlet illumination relative to the second generation increased by 15%-35%.
Suitable for two-dimensional code recognition, Mark point positioning detection, high reflecti

Categories: Coaxial light source, Industrial Lights

Description

Selection Description

JL	COX2/COX4	20	R
1	2	3	4
1. Brand
2, coaxial series
3, luminous surface area, unit is mm
4. Light source color (R is red, B is blue, W is white, G is green, IR is infrared, UV is ultraviolet)
* infrared, ultraviolet according to non-standard customized product quotation

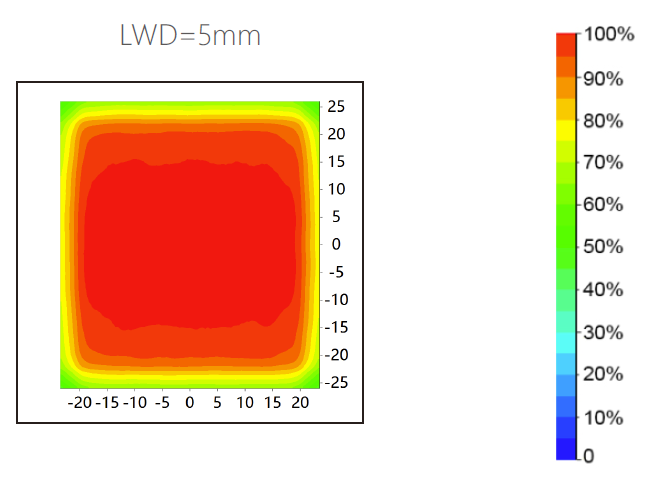

Working Distance And Illumination Distribution (JL-COX4-50W)
CO1

Parameter Table

Model	voltage/power		Product Size			weight (g)	adapter controller	Interface
Model	red	White/Blue/Green	length mm	width mm	height mm	weight (g)	adapter controller	Interface
JL-COX4-30	24V/1.85W	24V/3.29W	61	40	38	129.1	JL-DCV constant pressure series JL-STS3 constant pressure series	SM2.54mm 3P(1, 3)
JL-COX4-40	24V/3.5W	24V/4.5W	71	50	48	196.7
JL-COX4-50	24V/4.49W	24V/5.78W	81.5	60	57.5	274.6
JL-COX4-60	24V/6.17W	24V/8.1W	92	70	69	395.3
JL-COX4-70	24V/7.85W	24V/10.97W	102	80	79	501.4
JL-COX2-85	24V/15.5W	24V/17W	127	95	91	743
JL-COX2-100	24V/15W	24V/16.4W	146	110	107	1012
JL-COX2-150X120	24V/23.28W	24V/28.4W	166	160	127	1600
