Ring Counting / Verification in OFC:

In the optic fiber manufacturing industry, precision is paramount to ensure optimal performance and reliability. To meet stringent quality standards, a high-speed ring counting and verification system has emerged as a critical component in the production process. By utilizing a high-speed machine vision system, this innovative solution enables rapid inspection of optic fiber cables with diameters ranging from 100 to 250 micrometers at a remarkable speed of 1200 m/min. With real-time inspection, immediate alarms for missing rings, and comprehensive data logging capabilities, this system ensures accuracy, efficiency, and quality control.

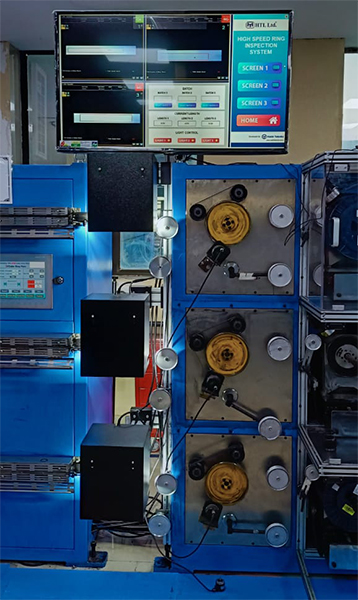

High-Speed Machine Vision System: At the heart of the ring counting and verification system lies a high-speed machine vision system specifically designed for optic fiber inspection. This advanced system utilizes cutting-edge technology to rapidly capture and process images of the optic fiber cables. With remarkable speed and precision, it analyzes the images to count and verify the rings on the cable's surface, ensuring the desired configuration and alignment.

Real-Time Inspection and Alarm for Missing Rings: The machine vision system provides real-time inspection capabilities, allowing for immediate detection of missing rings on the optic fiber cable. Through advanced image processing algorithms, the system compares the captured images against predetermined standards to identify any discrepancies. In the event of a missing ring, an alarm is triggered, alerting operators or quality control personnel to take immediate corrective action, preventing faulty cables from further production or shipment.

Data Logging with Respect to Length: To ensure traceability and quality analysis, the ring counting and verification system incorporates comprehensive data logging functionalities. It records the length of each inspected optic fiber cable along with the corresponding ring count and any detected anomalies. This data can be used for analysis, quality control monitoring, and process improvement, allowing manufacturers to identify trends, track performance, and make informed decisions.

Enhanced Precision and Efficiency: By employing a high-speed machine vision system, the ring counting and verification system achieves exceptional precision and efficiency. The rapid inspection capabilities ensure accurate ring counting and verification at an impressive production speed of 1200 m/min. This not only enhances quality control but also improves overall production efficiency, minimizing downtime and maximizing throughput.

Quality Control and Compliance: The ring counting and verification system plays a critical role in quality control and compliance with industry standards. By accurately inspecting optic fiber cables, it ensures that the rings are in the correct configuration and alignment, meeting the required specifications. This adherence to quality standards helps manufacturers comply with regulations and deliver reliable and high-performance optic fiber cables to their customers.
